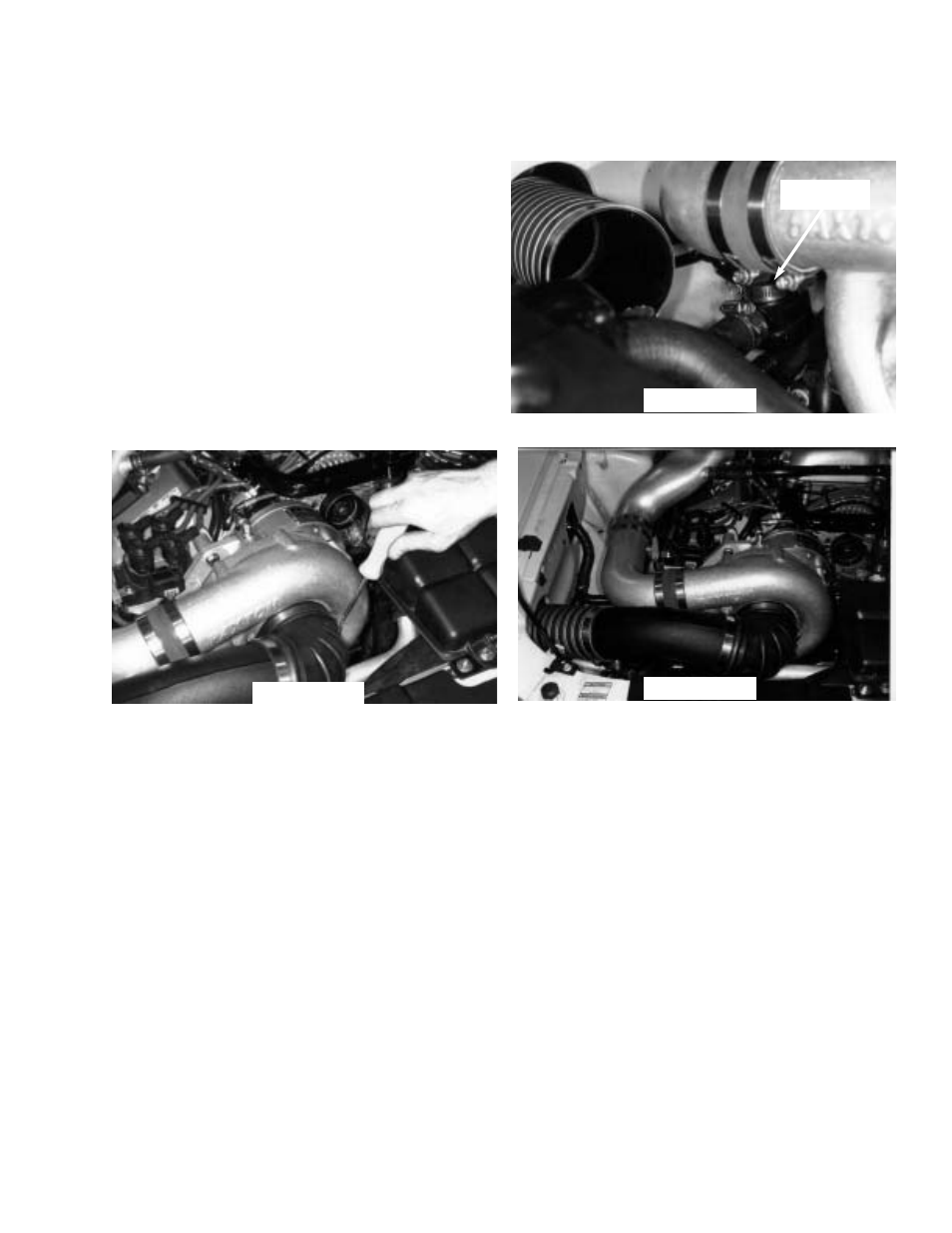

33: Push the short end of the bypass valve onto the boss underneath the discharge tube. The
other end will be attached to the boss on the inlet tube.(Fig 47)
34 Install the inlet tube to the flex hose and
attach the other end to the supercharger.
Attach the bypass hose to the inlet tube and
secure with the supplied hose clamp. Adjust
for the best fit and tighten all hose clamps.
Remove the rubber hose from the crankcase
evacuation plastic barb fitting located on the
passenger side valve cover. Attach the sup-
plied hose to the plastic barb fitting and route
the hose forward to the 90 degree brass fitting
on the plastic inlet tube. The supercharger
assembly is completed. (Fig 48, Fig 49)
COPYRIGHT 2000 PAXTON AUTOMOTIVE PAGE 14
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609
FIG 47
FIG 49
FIG 48
BOSS
