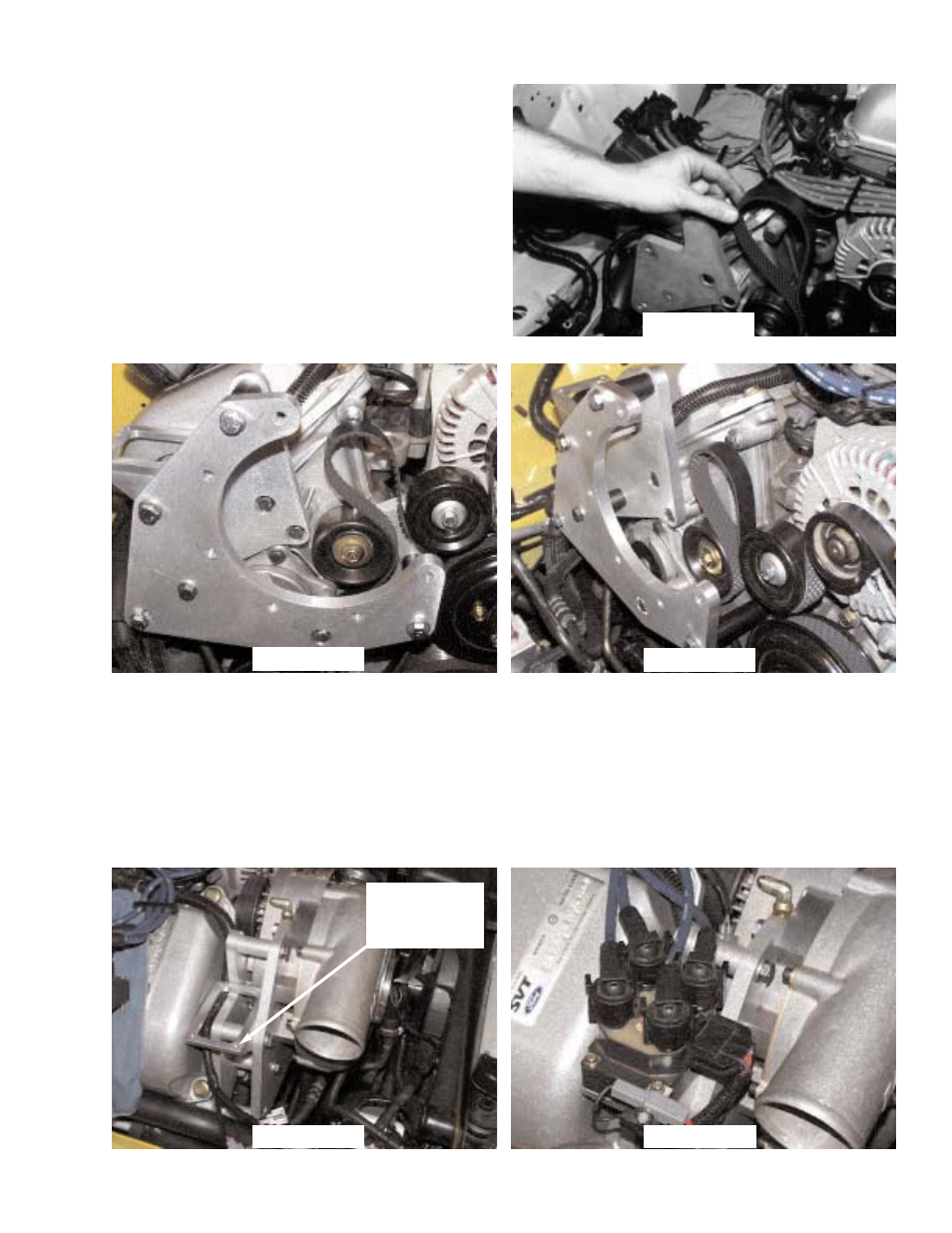

14. Install the supplied accessory/supercharger
drive belt and route as stock, but do not install
on alternator pulley until after the supercharger
is installed. Instead, leave a loop in the belt.
(Fig 19)
15. The main supercharger bracket comes pre-
assembled. Install it as shown. (Fig 20, Fig 21)
The belt is shown looped around the alternator
for clarity
16. Insert bolts into the bracket from the back. Attach the supercharger oil drain line to the fit-
ting at the bottom of the supercharger, and lower the supercharger into place on the bracket
while inserting the drive pulley through the loop in the belt. Bolt the supercharger onto the
main bracket using the supplied fasteners, as shown. (Fig 22) The lower bolts are easier to
tighten from underneath the vehicle. The belt can now be permanently installed.
17. Install the coil pack onto the mounting bracket, as shown.(fig 23) You will have to recon-
figure the wires to allow for the relocation of the coil pack.
COPYRIGHT 2000 PAXTON AUTOMOTIVE
PAGE 7
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609
