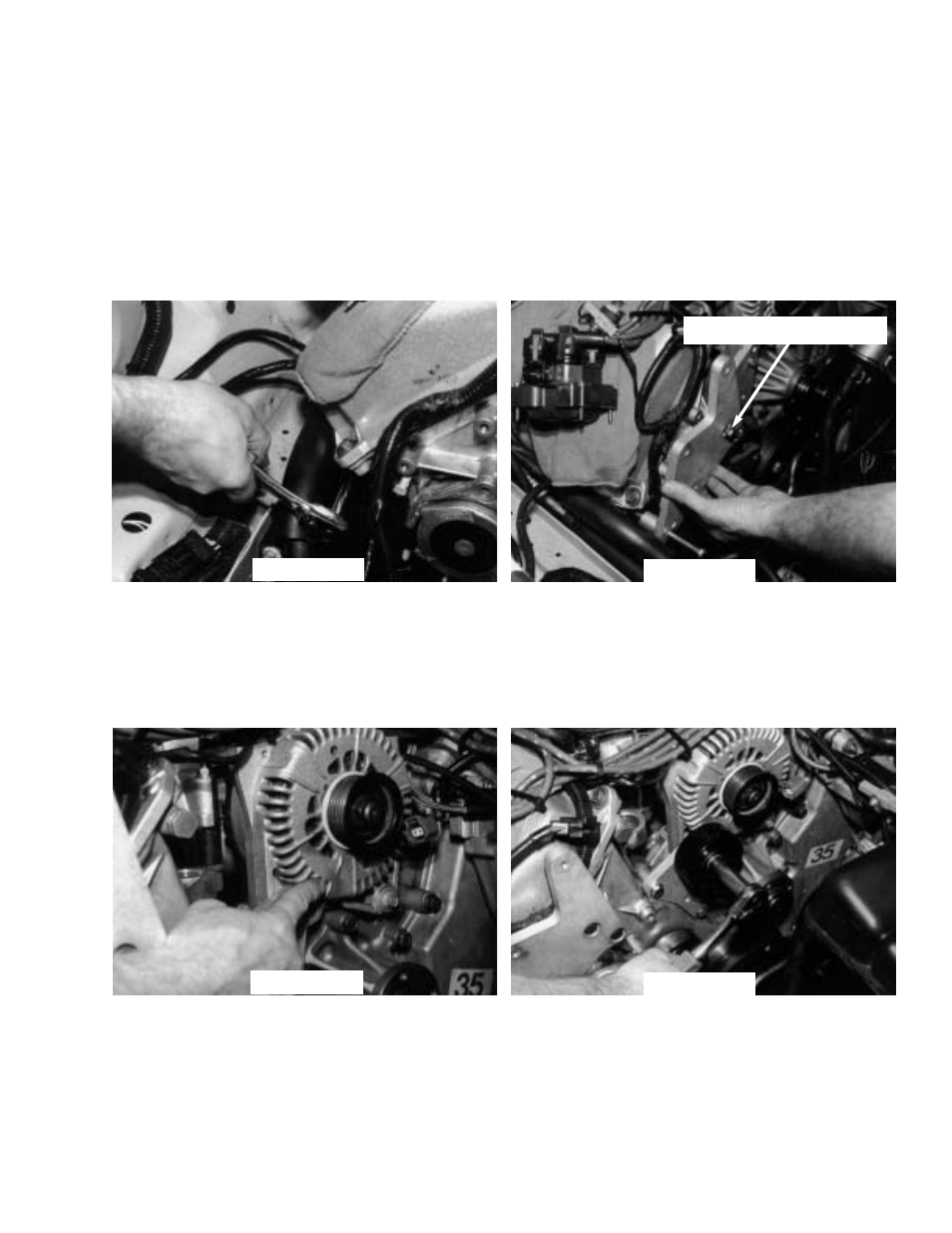

11. Remove the 13 mm stud bolt that is located under the lower corner of the passenger side
valve cover. This bolt stud supports the metal A/C line through the use of a small tab. Enlarge
the hole in the tab to 5/16-inch to accommodate the larger fastening hardware for the rear
supercharger support bracket. (Fig 15)
12. Install the rear supercharger mounting bracket in the three holes left by the coil mounting
bracket. The bolt/spacer assembly (arrow) bolts into the hole left by the 13 mm bolt stud, and
‘sandwiches’ the A/C line tab in place between the head and spacer. (Fig 16)
13. Mount the supplied idler pulley on the idler support bracket using the supplied hardware.
Trial fit the idler pulley first; if it does not fit, one of the ribs on the alternator must be ground
off (Fig 17). When the pulley clears the alternator it can be bolted into place. Install the stock
idler pulley in its original location, followed by the water pump pulley using the factory hard-
ware. (Fig 18)
COPYRIGHT 2000 PAXTON AUTOMOTIVE PAGE 6
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609
FIG 15
FIG 18 FIG 17
FIG 16
SPACER ASSEMBLY
