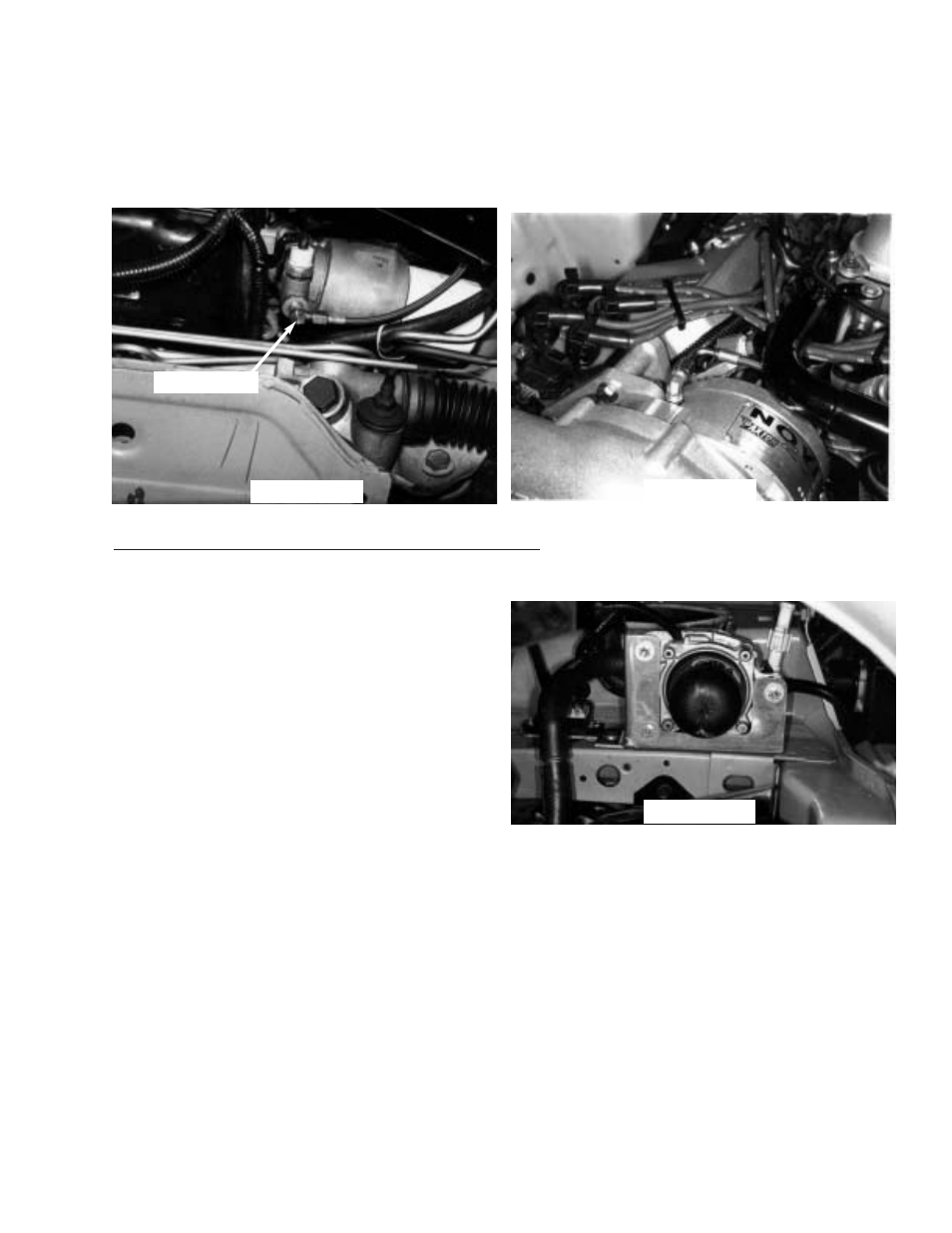

26. The supercharger feed line is attached by removing an existing pipe plug in the bottom of
the oil filter housing, and installing the supplied ⁄-inch NPT to –4 90-degree fitting and steel
braided hose (Fig 36, arrow). Run the line up the side of the engine, between the valve cover
and the power steering reservoir bracket, under the coolant transfer manifold and attach it to
the supercharger.(Fig 37) Zip tie the oil feed line to the CTM.
SMOG PUMP/INTAKE SYSTEM MODIFICATIONS
These steps illustrate how to relocate the smog pump and install the new intake system
27. Unbolt the smog pump and ignition module
from the passenger side fenderwell. Bolt the
smog pump and the module to the new bracket
using the supplied screws for the module and
factory bolts with supplied nuts for the smog
pump. The plug on the module should point
straight up. Connect the plug to the module
and bolt the assembly to the original mounting
point using the supplied bolts and spacers between the bracket and the body. APPENDIX I,
DRAWING 1017306 . Modify the smog pump hose as shown in Appendix I. Re-use the fac-
tory couplings and secure with the supplied hose clamp. (Fig 38)
COPYRIGHT 2000 PAXTON AUTOMOTIVE PAGE 11
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609
FIG 37
FIG 38
FIG 36
FITTING
