31: Attach the length of flex hose to the plastic
elbow on the MAF/air filter assembly inside the
fender (Fig 44). Install the cast-aluminum dis-
charge tube using the supplied rubber joints
and stainless steel clamps.
32 Attach the 4” hose to the Idle Air Control
(IAC) tube and retain with the supplied hose
clamp. Attach the other end to the discharge
tube and retain with another supplied hose
clamp. Use the remaining two hose clamps to
secure the hose to the IAC Valve and filter
housing. (Fig 45, Fig 46)
COPYRIGHT 2000 PAXTON AUTOMOTIVE PAGE 13
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609

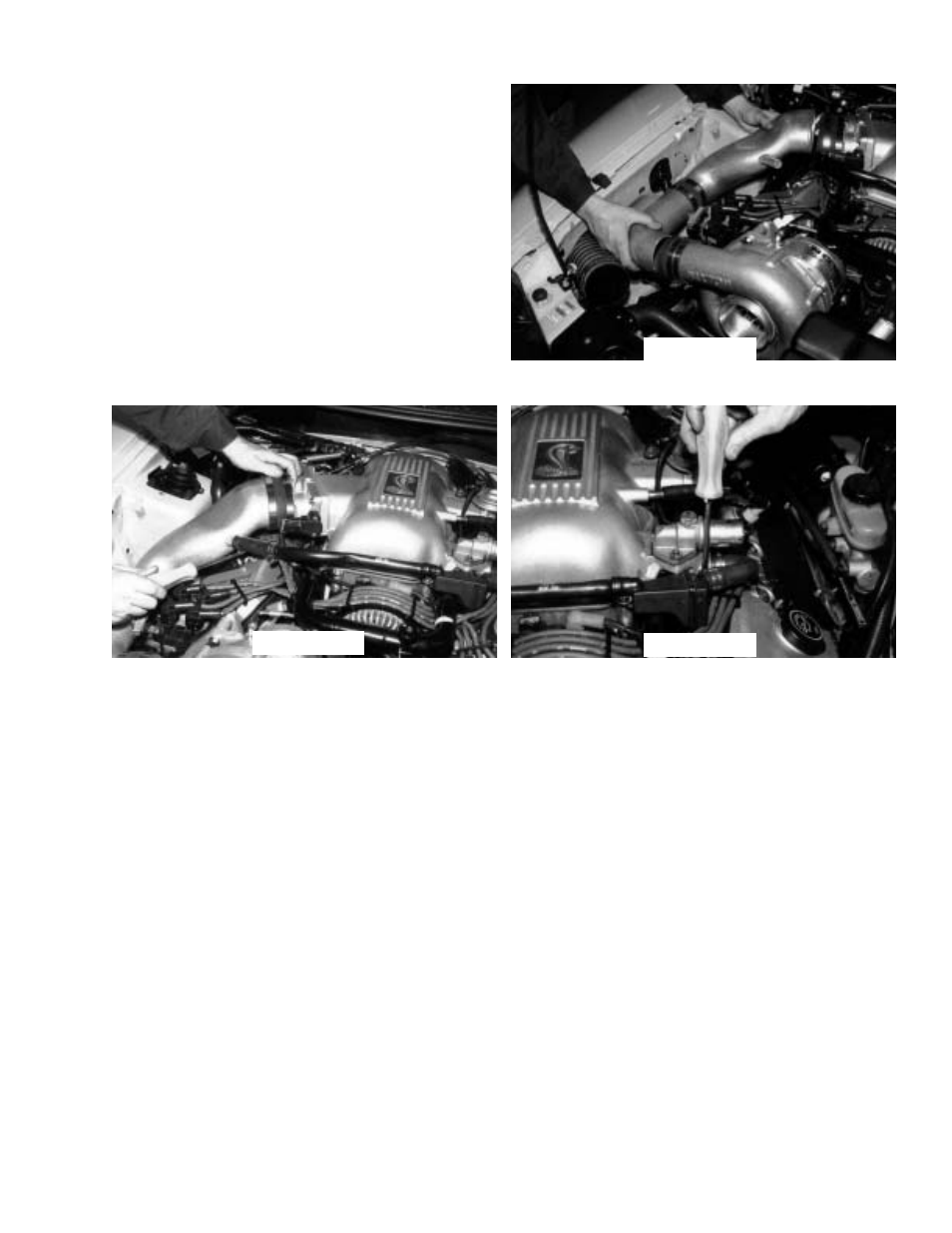

FIG 44
