DISASSEMBLY-- Preparing your vehicle.
NOTE: Beware of coolant spills. Mop up any spilled coolant
immediately. Radiator coolant very attractive to animals,
and highly poisonous.
1. Drain approximately one gallon of coolant from the radiator and disconnect the negative
side of the battery. Disconnect the MAF sensor, air inlet temp sensor and air idle bypass hose
from the air inlet tube, then remove the inlet tube and air filter housing by removing the single
8mm bolt. (Fig. 1. Fig 2)
2. Remove the coolant reservoir, upper radiator hose and disconnect the lower hose from the
coolant transfer manifold (CTM). Remove the spark plug wire retainer atop the alternator, fol-
lowed by the stud and nut arrangement that holds the CTM in place. Unplug the two sensors,
and remove the CTM (it is press-fit and sealed with O-rings, so it will take some wiggling to
get it free). (Fig 3, Fig 4)
COPYRIGHT 2000 PAXTON AUTOMOTIVE PAGE 3
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609
INSTALLATION
1996-1998 MUSTANG COBRA
NOVI 2000RR SUPERCHARGER

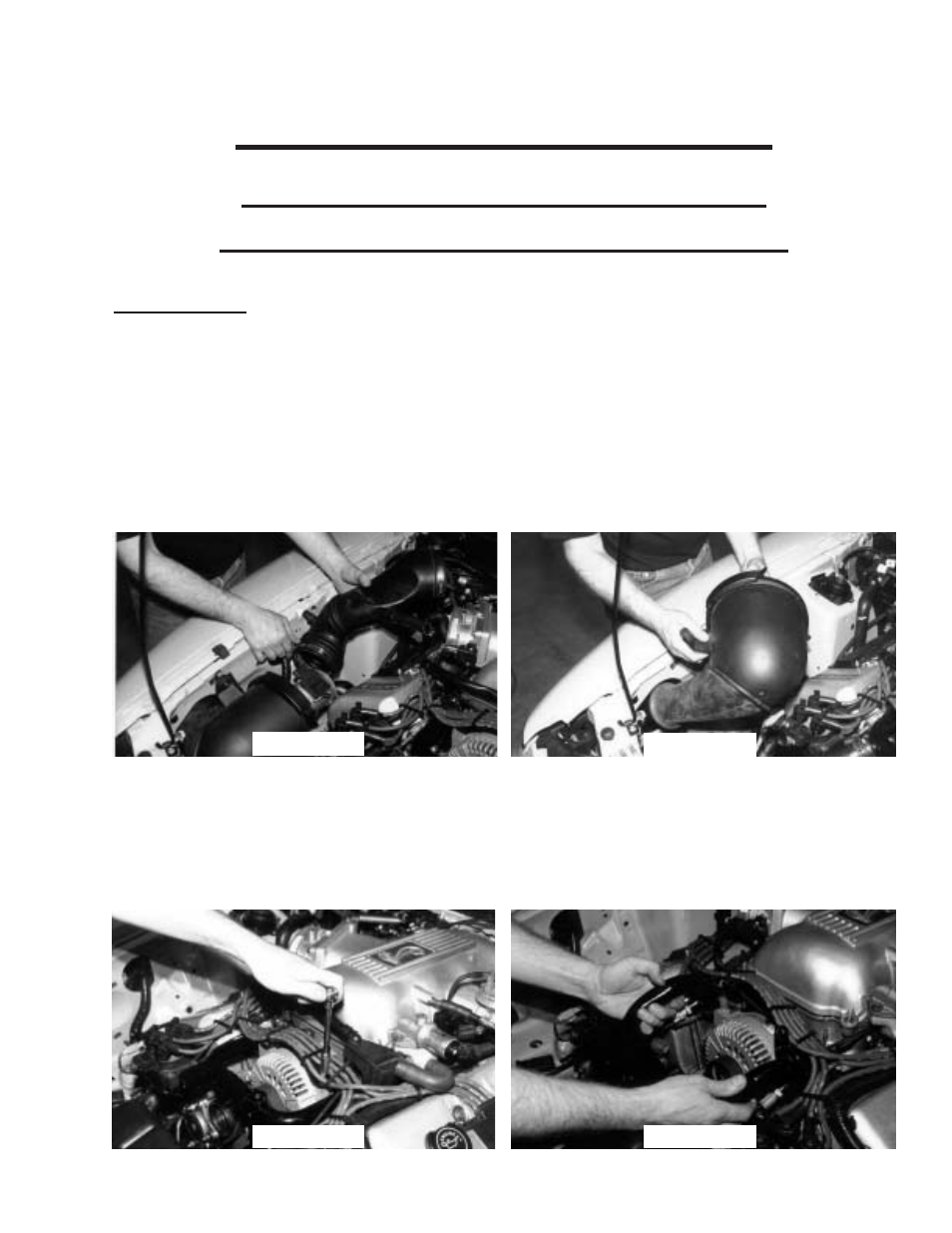

FIG 1 FIG 2
