OIL SYSTEM MODIFICATIONS
The Novi 2000RR supercharger relies on pressurized engine oil for its lubrication. The follow-
ing steps show how to install the oil feed and drain lines. NOTE: Do not attempt this step
with a hammer and punch, as you will severely dent the front of the pan.
24. Mark the front of the engine oil pan 1-1/8 inch below the pan rail and between the two
pan rail bolts, directly in the center of the small ‘hump’. Drill a pilot hole with a 3/16-inch drill
bit after smearing the drill bit with heavy grease to prevent small metal particles from falling
into the pan. (Fig 33)
Once the hole has been drilled, insert a straight length of welding rod or heavy wire (such as
a coat hanger) into the hole approximately three inches to see if it contacts any of the recipro-
cating assembly (connecting rod, crankshaft counterweight). If it does, turn the engine over
and repeat the process until no interference is encountered.
Next, apply a small amount of anti-seize lubricant to the tip of the punch (Fig 34), and insert it
into the pilot hole. Hit the punch with an air hammer carefully using small bursts, until the
punch is inserted up to its shoulder. NOTE: Use extreme caution not to make the hole too big,
or the drain fitting will not fit and the pan will be ruined.
25. Apply a liberal amount of heavy grease to a
3/8-inch by 18 NPT tap (not included), and
gradually thread into the hole. NOTE: Only run
the tap 2/3 of the way in. Otherwise the fit-
ting will not seal properly. Clean the threads
using a clean rag and an approved solvent,
such as carburetor cleaner. Apply a small
amount of silicone RTV to the threads of the
supplied 3/8-inch pipe to -8 fitting and insert
into the hole, being careful not to over-tighten.
The hex nut of the fitting should be clear of
the pan, leaving some thread showing. Install the supercharger drain hose fitting so that
the elbow is oriented toward the passenger side, away from the harmonic dampener, (Fig 35)
COPYRIGHT 2000 PAXTON AUTOMOTIVE PAGE 10
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609
FIG 35

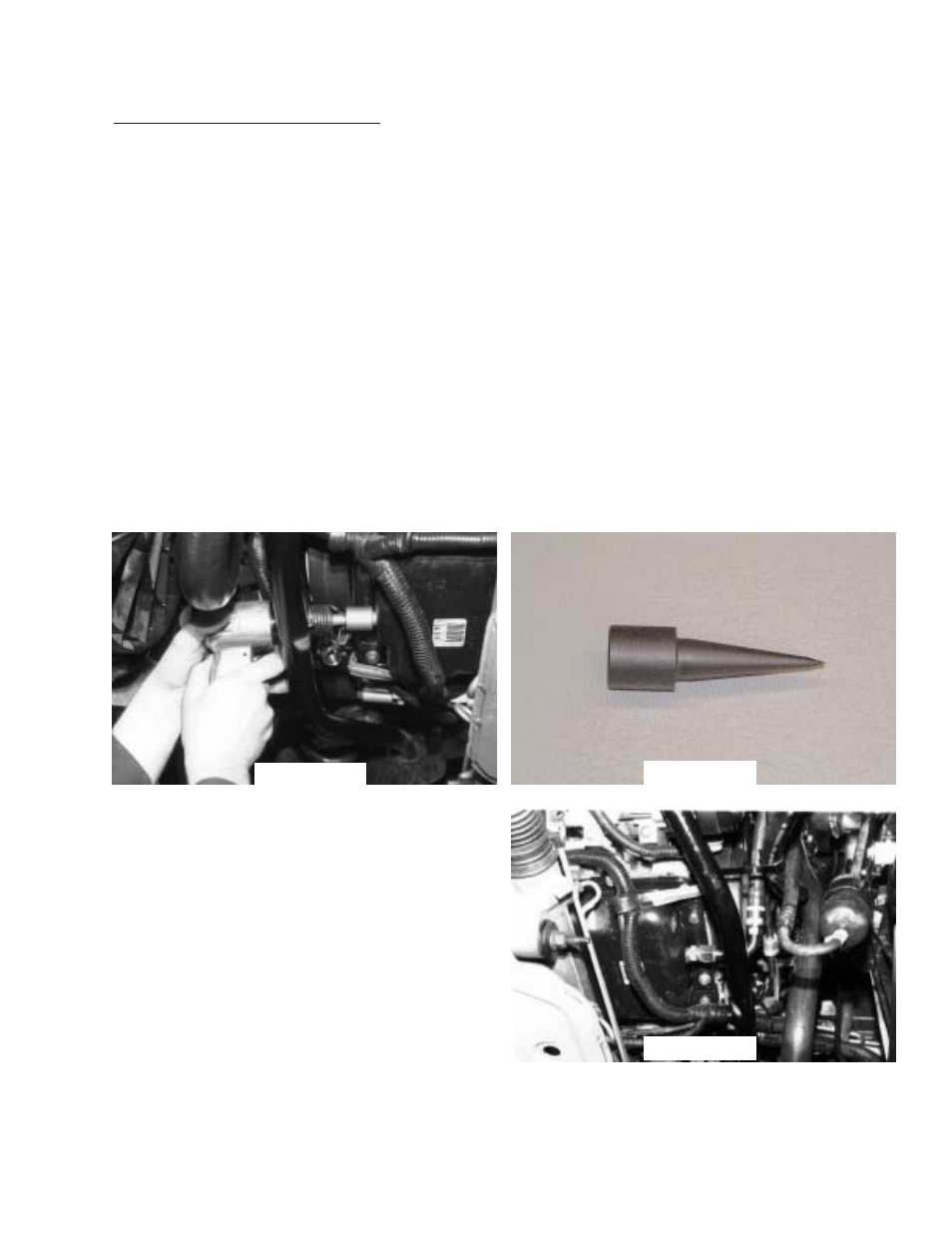

FIG 33 FIG 34
