COOLING SYSTEM MODIFICATIONS
These modifications are necessary in order to allow clearance for the supercharger.

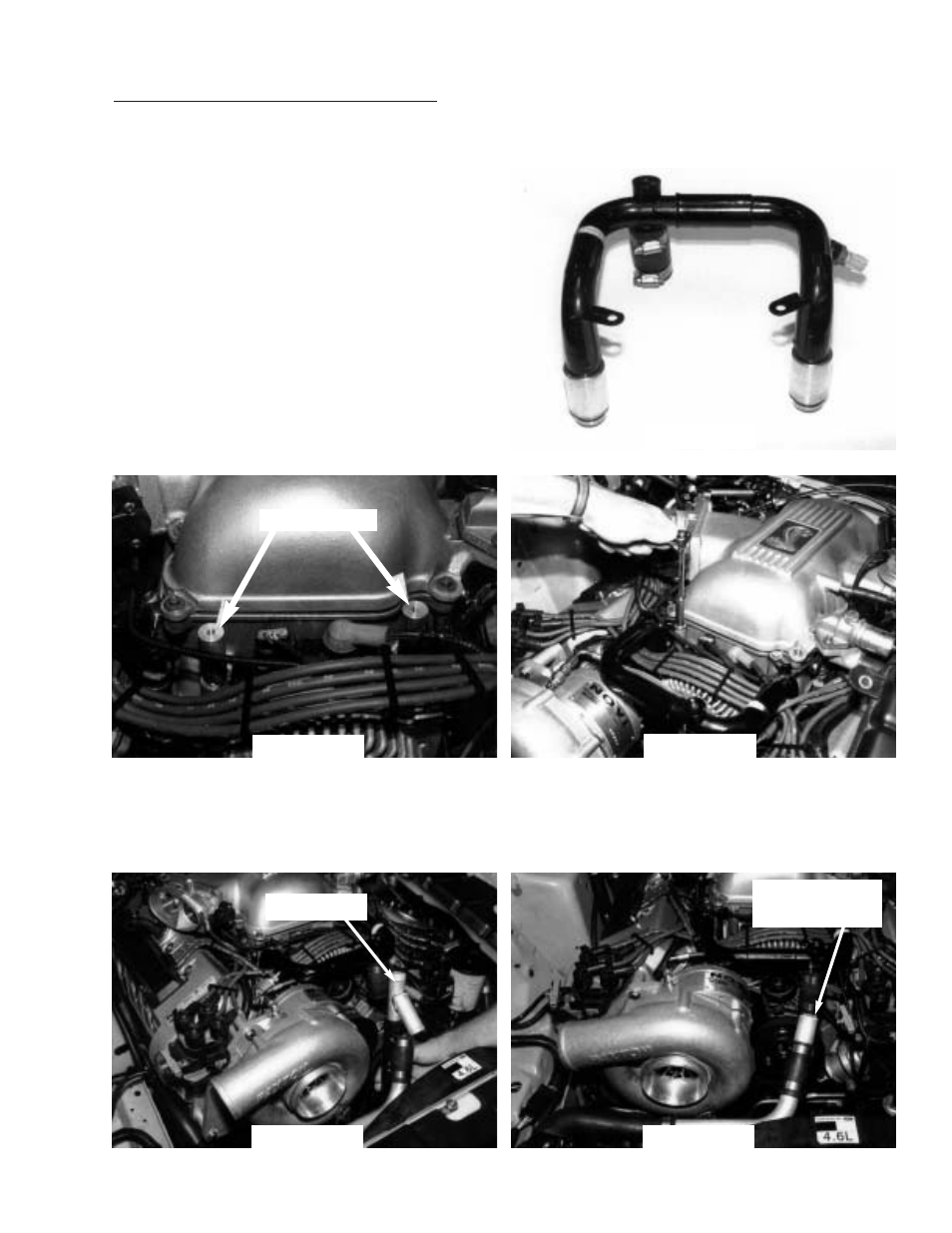

18. The supplied Coolant Transfer Manifold
(CTM) is taller than the original, providing nec-
essary clearance for the supercharger. To
mount the new CTM (Fig 24), trim the 6mm
portion of the two mounting stud bolts to 3/4
inch, and thread the supplied aluminum spacer
stands (Fig 25,arrows) into place to properly
locate the CTM. Remove the original coolant
temperature sensors from the old CTM and
install in the new unit. Install the CTM and
secure with the supplied fasteners. (Fig 26)
NOTE: Some kits may be supplied with a CTM
that appears differently than the unit shown.
Both CTM’s mount in the same manner.
19. Install the straight portion of the Y tube into the lower radiator hose, and orient the angled
portion towards the passenger side of the car. (Fig 27) Install the supplied upper radiator
hose and attach to the angled portion of the Y tube. Install the upper portion of the Y tube into
the CTM. (Fig 28)
COPYRIGHT 2000 PAXTON AUTOMOTIVE PAGE 8
ASSEMBLY MANUAL for the
1996-98 MUSTANG COBRA
P/N 4809609
FIG 24
FIG 26
FIG 27 FIG 28
FIG 25
SPACERS
‘Y’ TUBE
‘Y’ TUBE
CONNECTED
