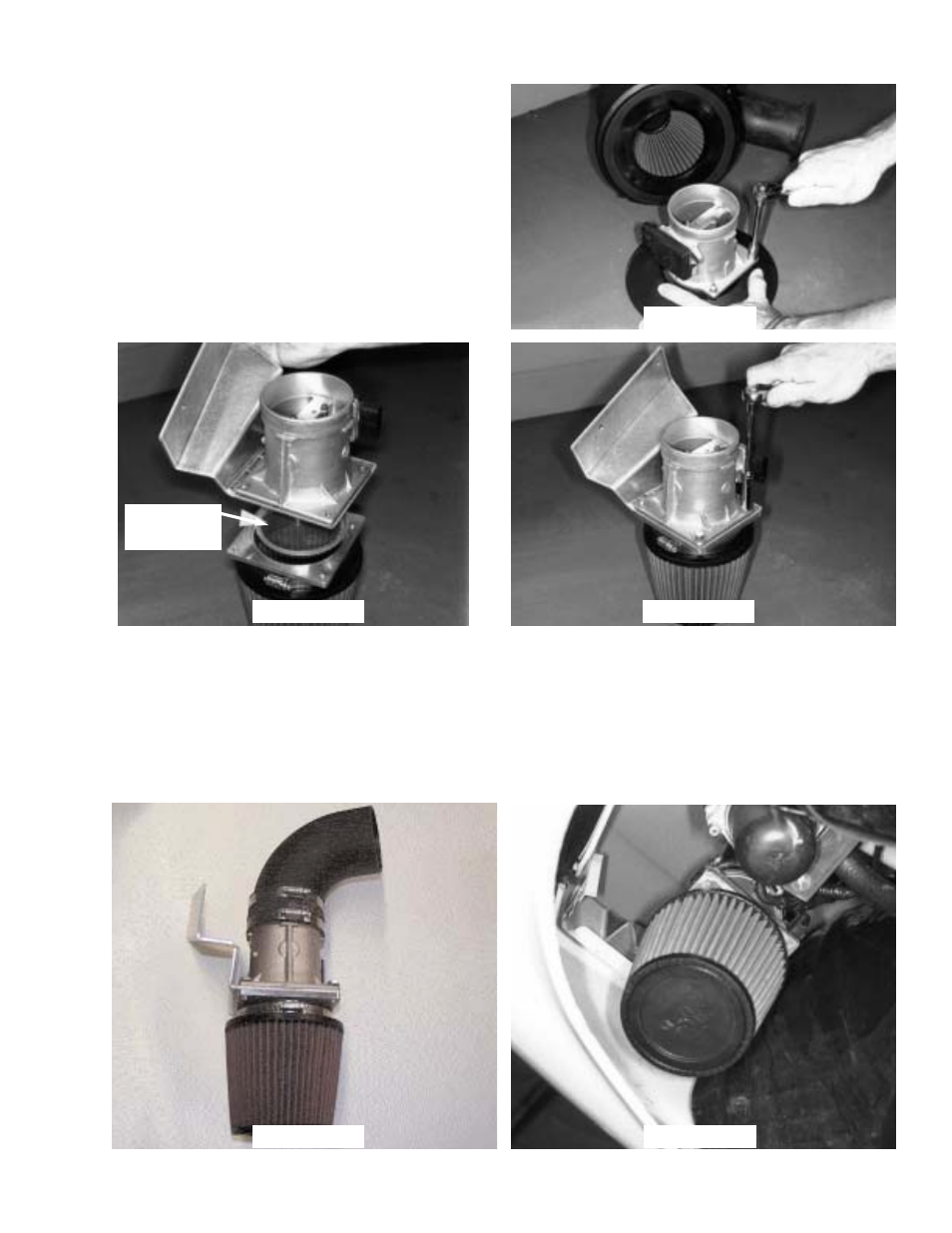

28. The mass air meter is removed from the
original air box (Fig 39), and attached to a
Paxton-supplied bracket. This assembly is
then bolted to the air filter adapter and air filter,
(Fig 40, Fig 41). NOTE: Be sure to install the
MAF screen as shown (Fig 40, arrow) or the
engine will not run properly.
29. Attach the the short side of the plastic elbow (the end with the lip) to the MAF/air filter
assembly (Fig 42). Leave the hose clamp loose so the elbow can be rotated once the assem-
bly is mounted in the car.
30: Remove the two nuts located in the passenger side inner fender wall. Push the mass air
meter/air filter assembly and inlet tube up into the passenger side fender, and attach to the
existing studs in the inner fender panel using the two factory nuts. (Fig 43)
