Hardware Preparation and Installation
MVME8100 / MVME8110 Installation and Use (6806800P25G) 47
Use the following steps to install a SATA drive:
1. Wear an ESD strap to your wrist and fix the other end of the ESD strap to an electrical
ground.
2. Secure mounting brackets to each side of SATA drive as shown in step 1 of Figure 2-4.
3. Attach SATA adapter board to SATA drive as shown in step 2 of Figure 2-4.
4. Use two screws to secure adapter to mounting brackets as shown in step 3 of Figure 2-4.

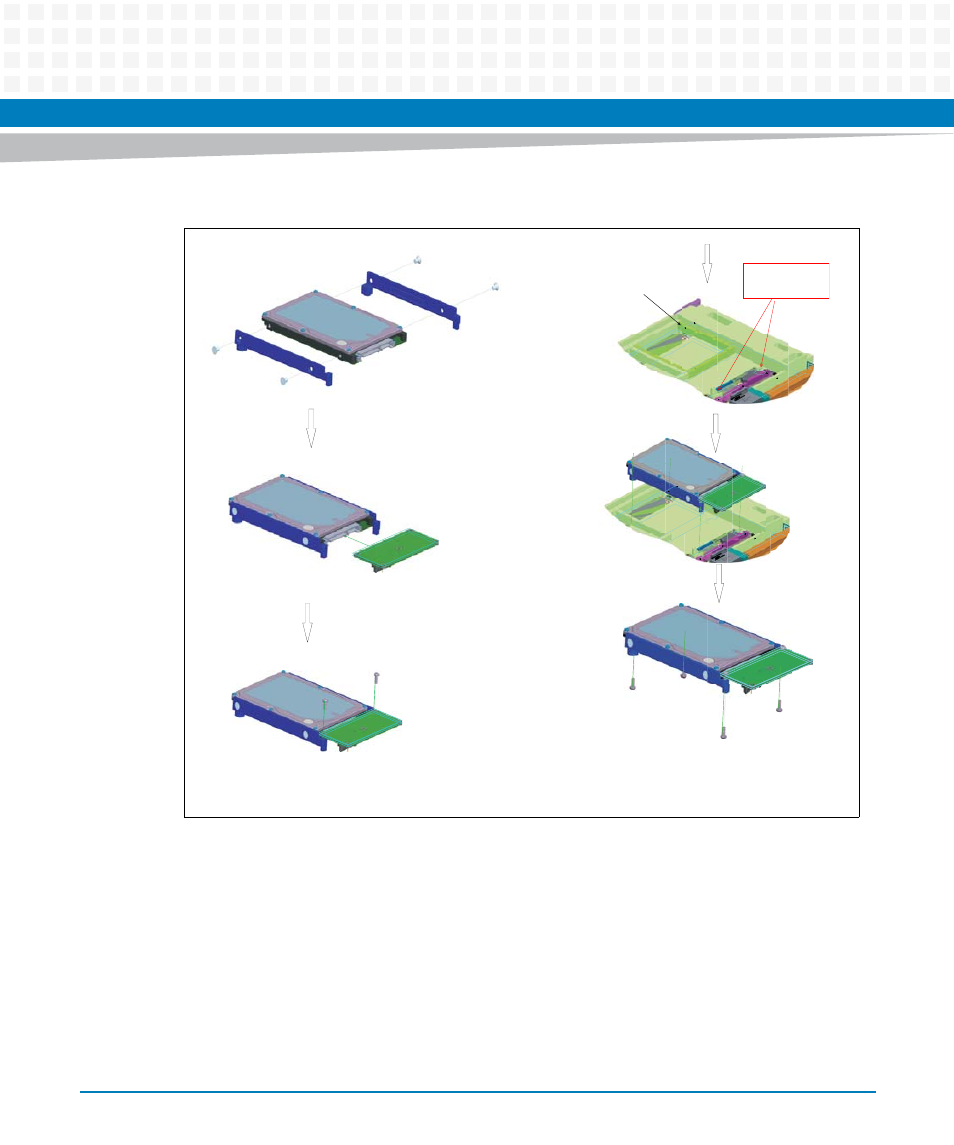

Figure 2-4 SATA drive Installation
STEP 1
STEP 2
STEP 3
STEP 6
ASSEMBLE FOUR MTG SCREWS
FROM SIDE 2 OF THE BOARD
STEP 5
REMOVE PMC BRACKET
STEP 4
REMOVE PMC
Mounting Posts
