Figure 4-9, Thermal management, Functional description – Artesyn MVME8100/MVME8110 Installation and Use (September 2014) User Manual
Page 93
Advertising
Functional Description
MVME8100 / MVME8110 Installation and Use (6806800P25G)
93
However, to maintain proper CPU temperature, the recommended air flow direction is to enter the board
from the CPU side, that is, the air should flow in the direction from PMC/XMC site 1 to PMC/XMC Site 2.

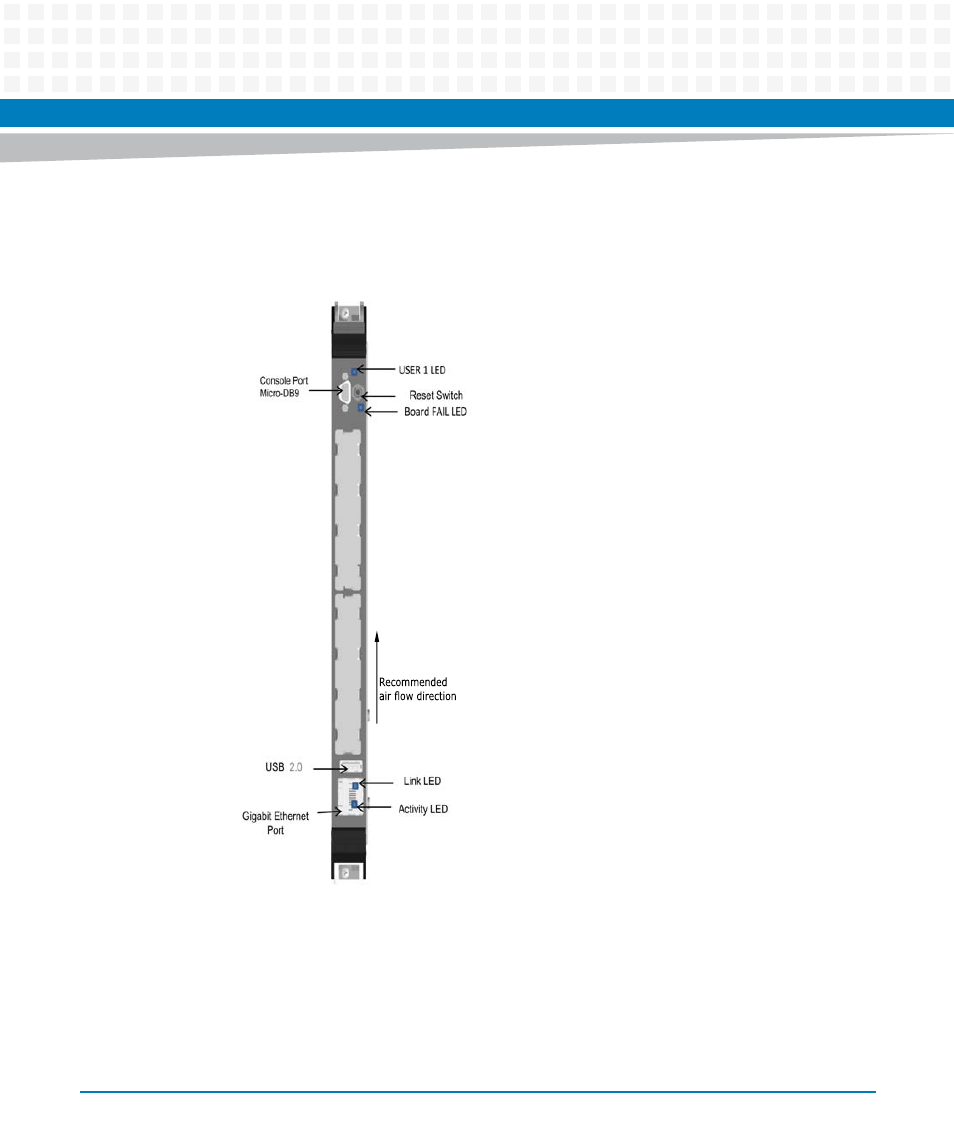

Figure 4-9
Thermal Management
