Comtech EF Data CSAT-6070 User Manual
Page 41
5 to 25 Watt Model C-Band Transceiver
Revision 0
Installation
MN/CSAT6070.IOM
4. Position the unistrut bracket (1) with pipe blocks (11) against the mounting pole, slide
the pipe blocks (11) until they contact the mounting pole.
5. Ensure the pipe blocks (11) are centered to the unistrut bracket (1).
6. Tighten
the
hardware.

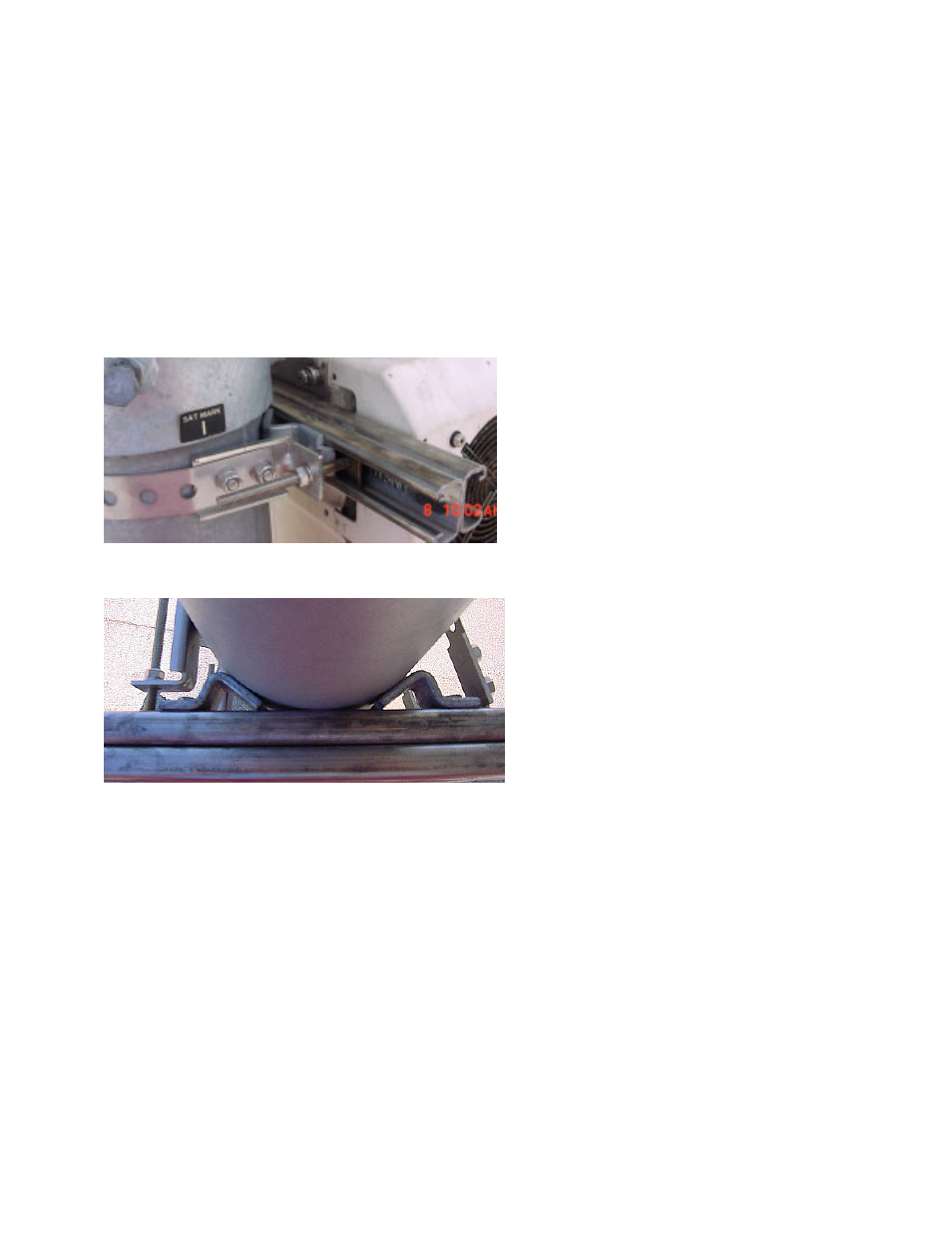

Installing the Pole Bracket with CSAT Mounting Plate.
Figure 2-5a On the pole
Figure 2-5b Looking down
7. Attach bracket (5, figure 2-1) to the strap (4) using two nuts (10), two flat washers,
(7), and two split washers (8).
8. Place the assembly against the pole with the strap around the pole and trim the strap
to fit as shown in Figure 2-5, using the tin snips.
9. Attach bracket (3, figure 2-1) to the strap (4) using two nuts (10), two flat washers (7),
and two split washers (8).
10. Slide tensioner bracket (2) into channel of the unistrut bracket (1).
11. Place assembly on the pole. Slide bracket (3) over bracket (2).
2–7
