18
2
Hardware Installation

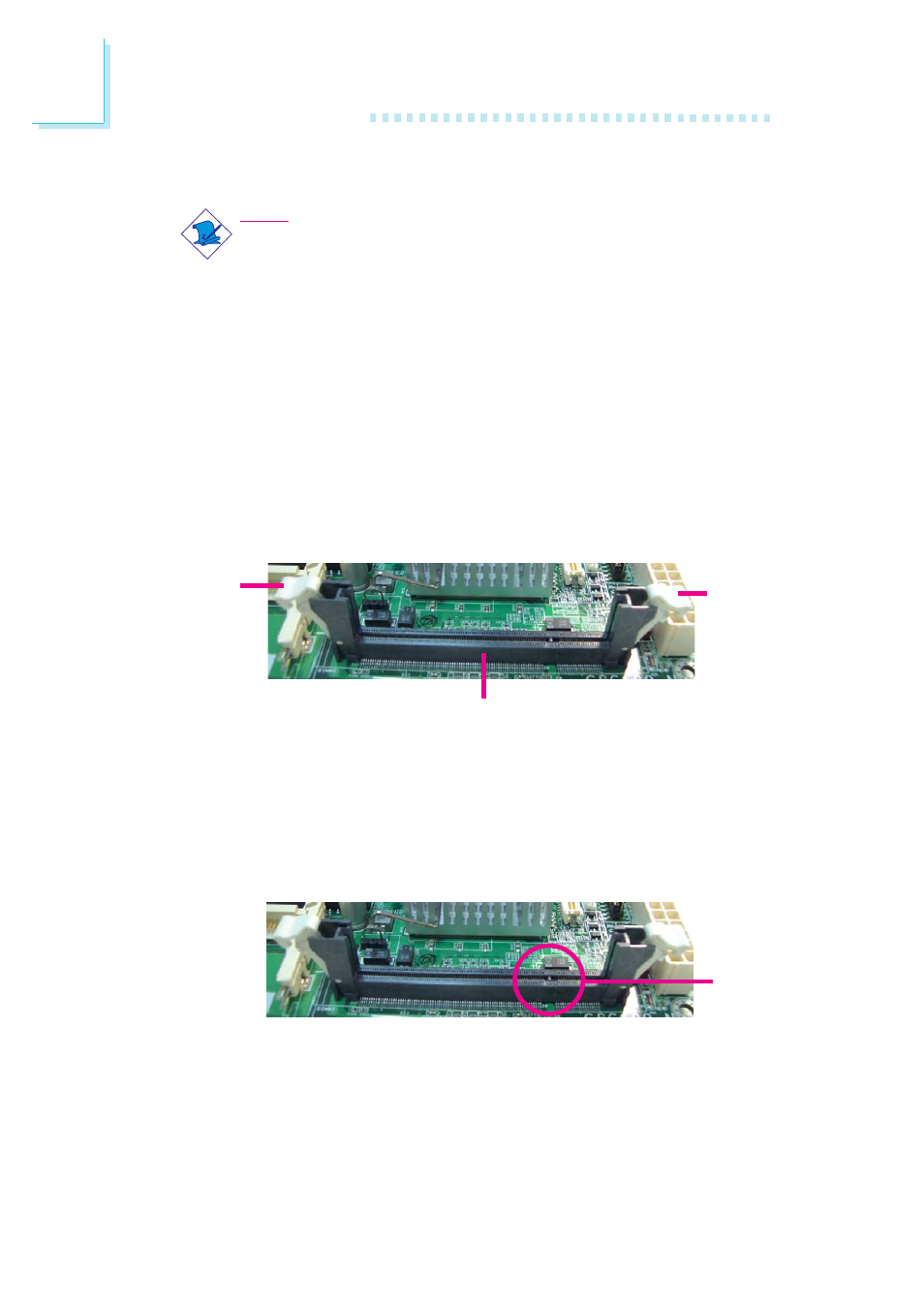

Installing the DIM Module
Note:
The system board used in the following illustrations may not
resemble the actual one. These illustrations are for reference
only.
1. Make sure the PC and all other peripheral devices connected to
it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the SODIMM 2 socket on the system board.
4. Push the “ejector tabs” which are at the ends of the socket to
the side.
Ejector
tab
5. Note how the module is keyed to the socket. Grasping the
module by its edges, position the SODIMM above the socket
with the “notch” in the module aligned with the “key” on the
socket. The key ensures the module can be plugged into the
socket in only one way.
SODIMM 2
Ejector
tab
Key
