19
2
Hardware Installation

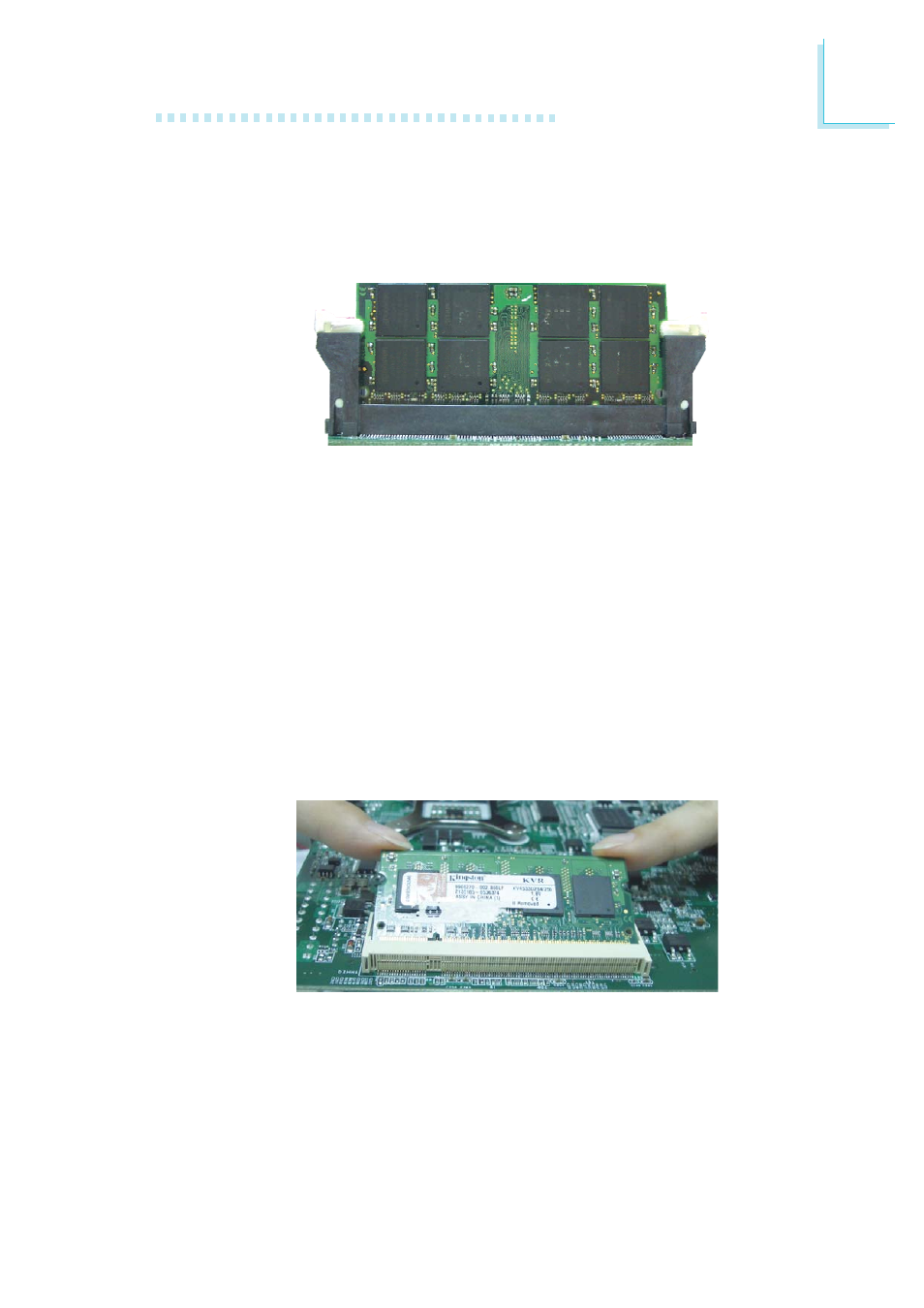

7. To install another SODIMM, locate the SODIMM 1 socket on the
system board.
8. Insert the module into the socket at an approximately 30 de-
grees angle. Note that the socket and module are both keyed,
which means the module can be plugged into the socket in only
one way.
9. To seat the module into the socket, apply firm even pressure to
each end of the module until it slips down into the socket. The
contact fingers on the edge of the module will almost completely
disappear inside the socket.
6. Seat the module vertically, pressing it down firmly until it is com-
pletely seated in the socket. The ejector tabs at each end of the
socket will automatically snap into the locked position to hold
the SODIMM in place.
