Control elements and connections
General remarks
Controls and con-
nections

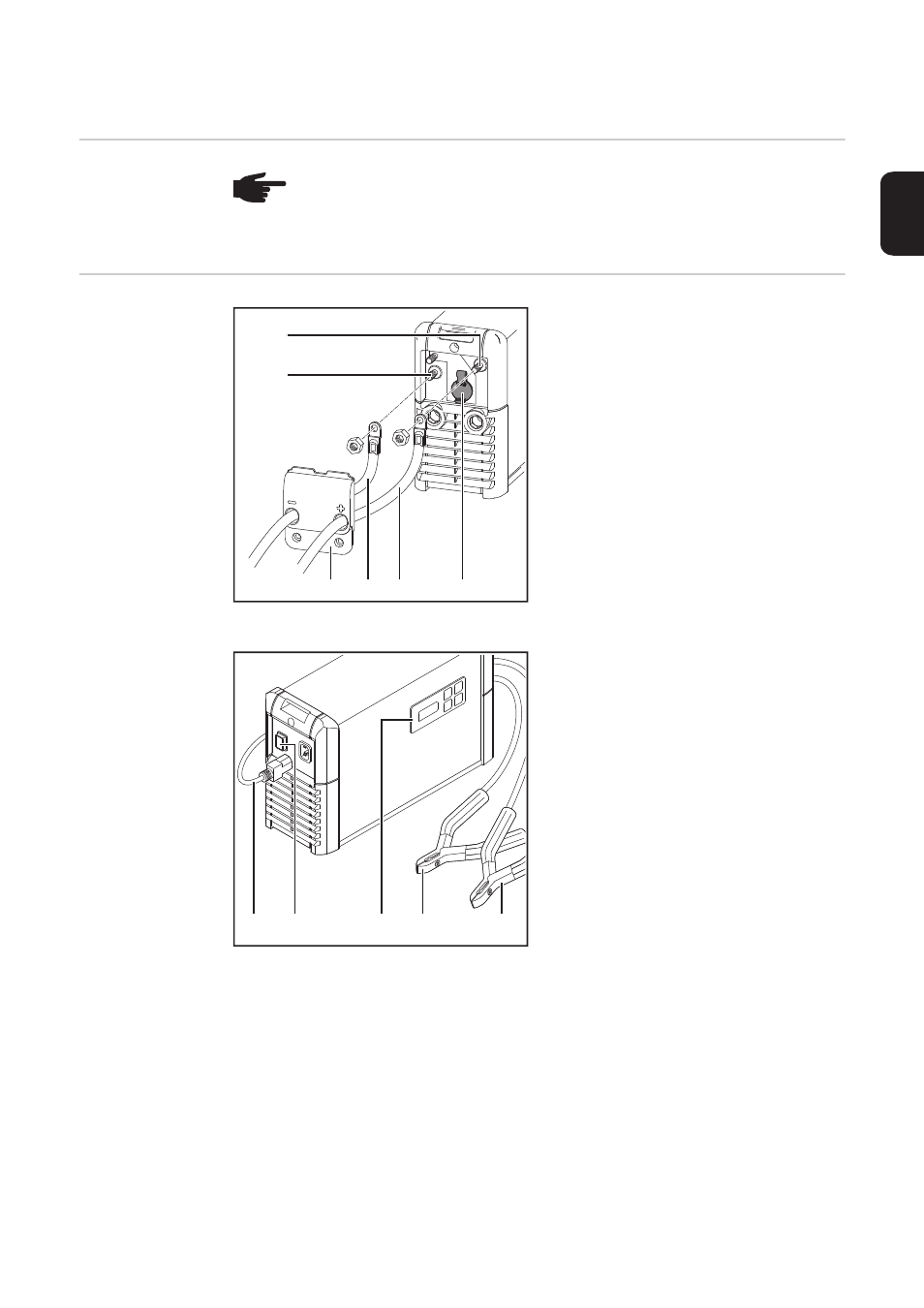

Front view
(1) (+) charging terminal screw con-
nection
(2) (-) charging terminal screw connec-
tion
(3) Cover for USB port
(4) (-) charging terminal - black
(5) (+) charging terminal - red
(6) USB port
For updating the firmware.
For further details please see our
Internet homepage
http://www.fronius.com
Rear view
(7) Multifunction panel
(8) Devices equipped with main switch
(9) Mains cable/plug
NOTE! Owing to firmware updates, you may find that your machine has certain
functions that are not described in these Operating Instructions, or vice-versa. Al-
so, certain illustrations may be slightly different from the actual controls on your
machine. However, these controls function in exactly the same way.
(1)
(2)
(3) (4) (5) (6)
(4) (5) (7) (8) (9)
