Fitting options
Fitting optional
edge guard Depending on the device, a special edge guard can be fitted.
IMPORTANT! The edge guard must be fitted if the charger is being mounted on a wall, as
the fitting tools assume that an edge guard is present.
The edge guard must not be fitted if the charger is installed on the floor.

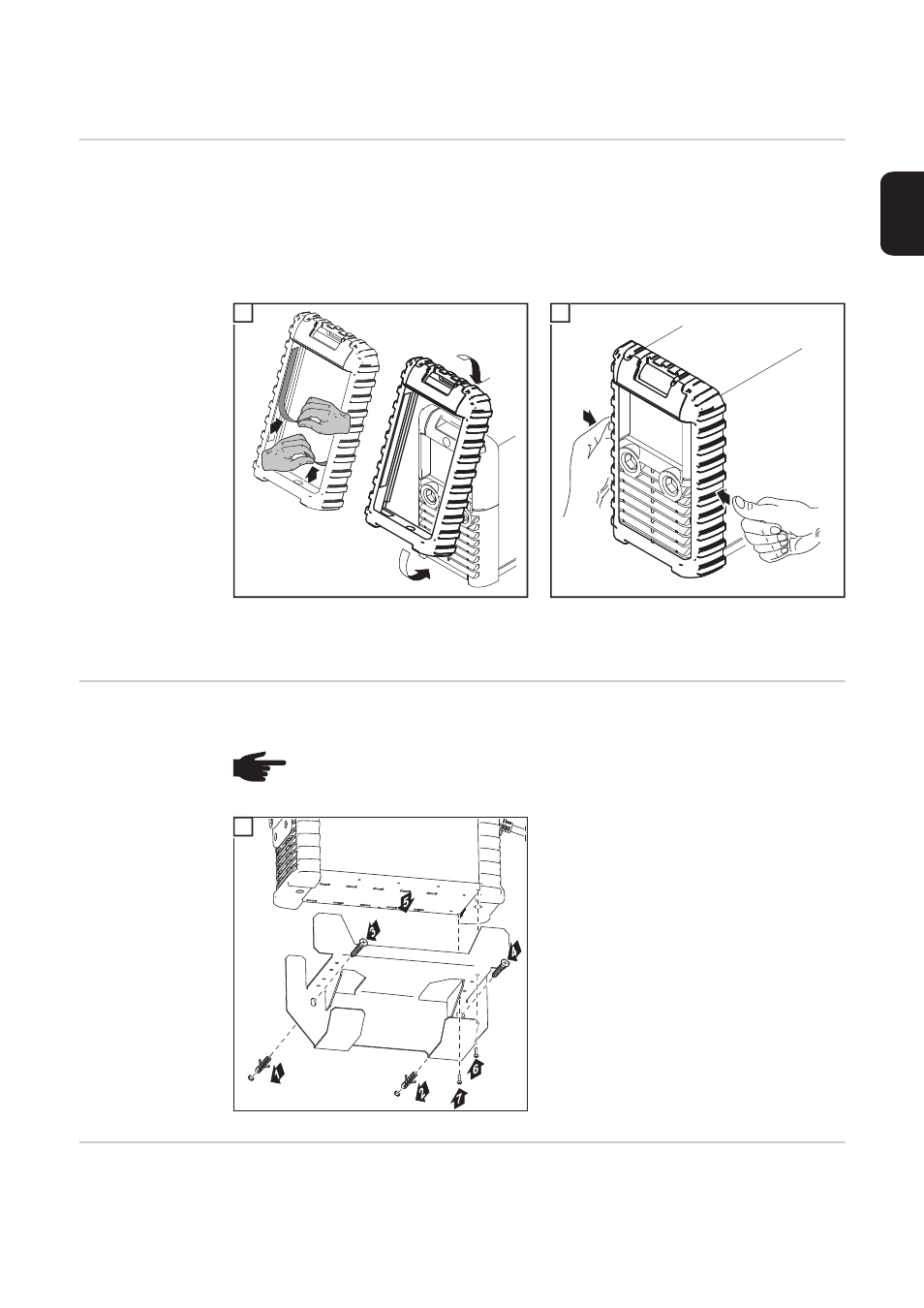

Fitting the edge guard
IMPORTANT! If the edge guard is to remain fitted to the charger permanently, peel the
cover strips off the adhesive strips.
Mounting on the
wall Fit the charger to the wall using the optional wall bracket:
- Fasten the wall bracket to a suitable
wall surface using dowels and screws
- Position charger on wall bracket
The base of the charger must lie flat on
the wall bracket.
- Only if the charger is being fitted per-
manently to the wall bracket:
Fasten the charger to the bracket using
the two screws supplied (diameter 3.5
x 9.5 mm)
Fitting to the floor Fit the charger to the floor using the optional fitting brackets:
2
1
4
3
1
1
2
2
NOTE! If fixing to the wall, please note the weight of the charger. Only fix to a wall
that is suitable to this purpose.
