Pub. 42004-697L2B
Model 7085-005-UL/EX SmartSeries Multi-Party Haz. Area Amp. Enclosure with RTU
Page
6 of 15
\\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-697l2b.doc
11/07
Cable Entries
Refer to Figure 5 for the UL conduit entries, and to Figure 6 for the EX cable gland entries. Ensure any
unused openings are sealed with proper fittings per local standards.

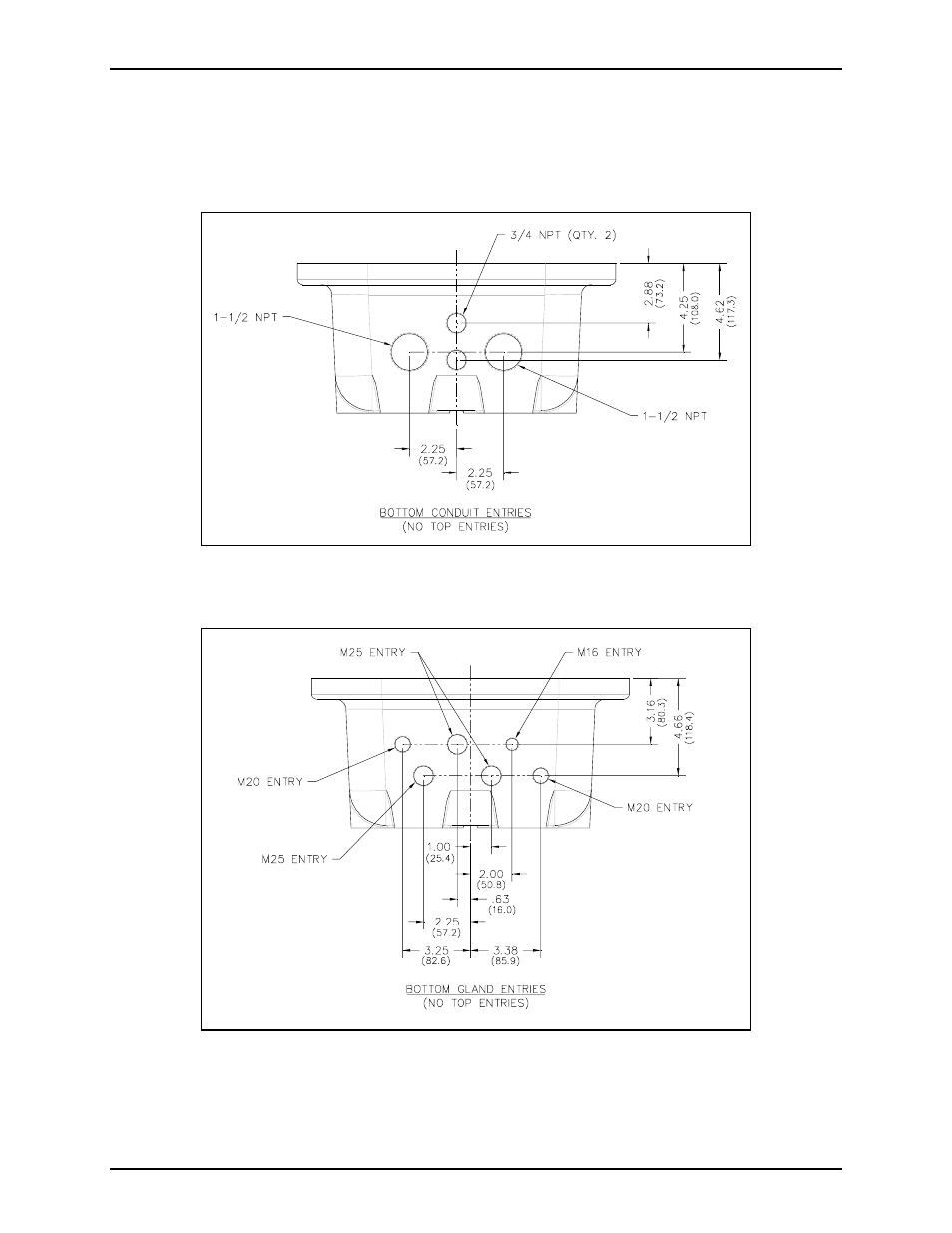

Figure 5. Model 7085-005-UL Conduit Entries
Figure 6. Model 7085-005-EX Cable Gland Entries
