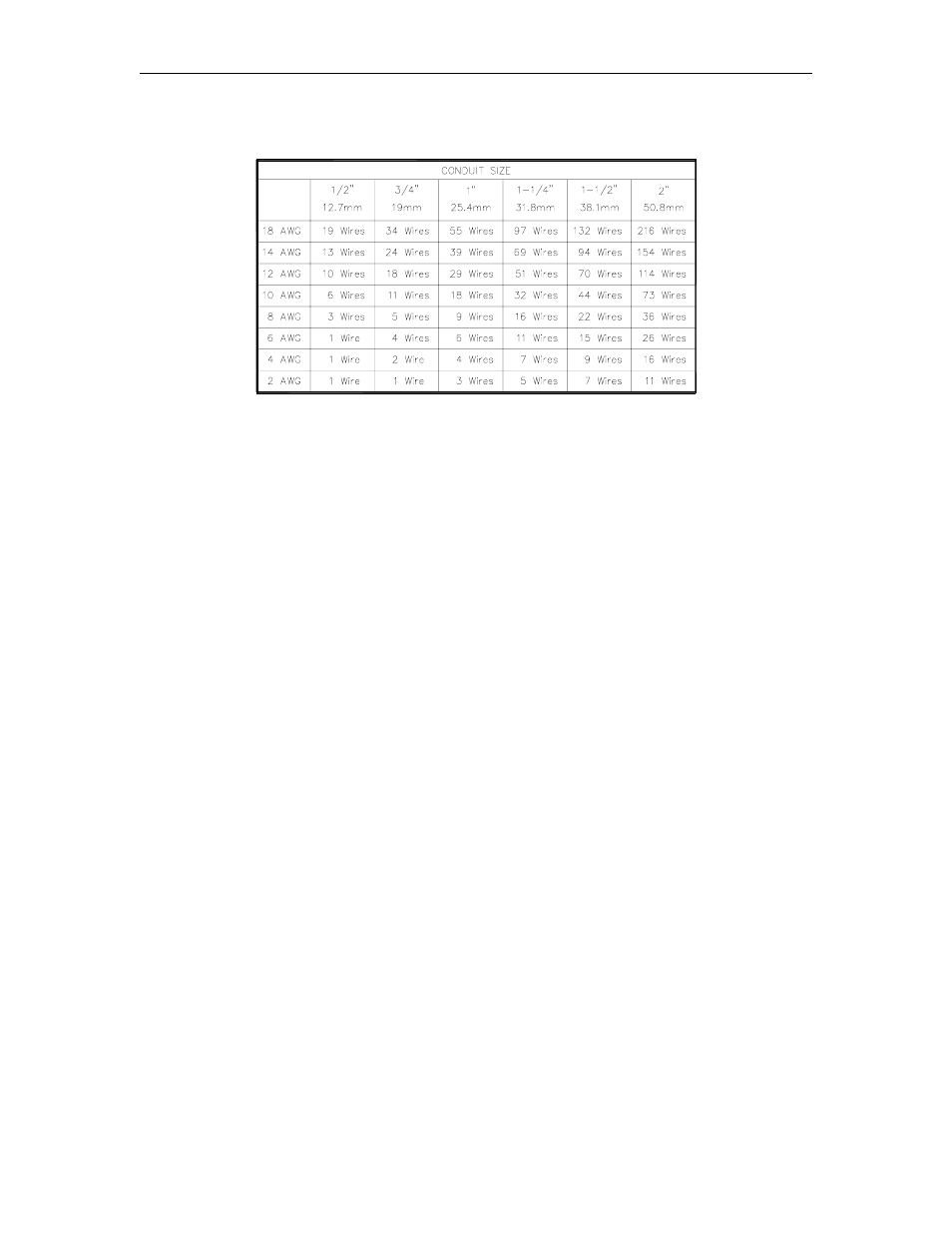

Conduit Size
To connect the rigid conduit for the motor, start at the electrical connection box in pedestal of
pump, and take necessary measurements for pipe between motor and switchboard in building.
The conduit must be connected to make it water-and vapor-tight. Do not use flexible conduit.
When pulling wires through conduits, be careful not to damage insulation or break wires. To
connect wires, ends of wires must have insulation removed. Splice them tightly together, apply
solder, and follow with an application of electrical tape equal in thickness to insulation of wire
leads.
WIRING NOTES
1.
All wiring and conduit runs must conform with all building/fire codes, all Federal, State, and
Local codes, National Electrical Code, (NFPA 70), NFPA 30, and Automotive and Marine
Service Station Code (NFPA 30A) codes and regulations.
2.
The brown wire (Switch Detect) is shipped capped from the factory. When used, it connects
to a solenoid valve or fuel management system. Do not connect this wire without first
checking the ON voltage of this line to ascertain compatibility with the equipment being
connected.
3.
All wiring must be installed according to the requirements outlined in this section.
