Installing the Pulser Kit in Twin Units (Kits M06245K001 through M06245K003 and M06245K008)
Page 12 MDE-4506A Atlas™ Pulser Kits M06245K0XX Installation · May 2006
5 Secure the computer in place with the mounting bolts saved during the initial moving
procedure.
Installing the Remaining Conduit
1 In the kit, locate the parts shown in the appropriate illustration. Refer to Figure 5 on page 12 .
Note: Feed wires through conduit and fittings as it is assembled.
2 Install a Q10016-04 conduit union on the formed conduit connected to the pulsers.
For Kits M06245K001, M06245K002, and M06245K003, refer to
Figure 5 on page 12 .

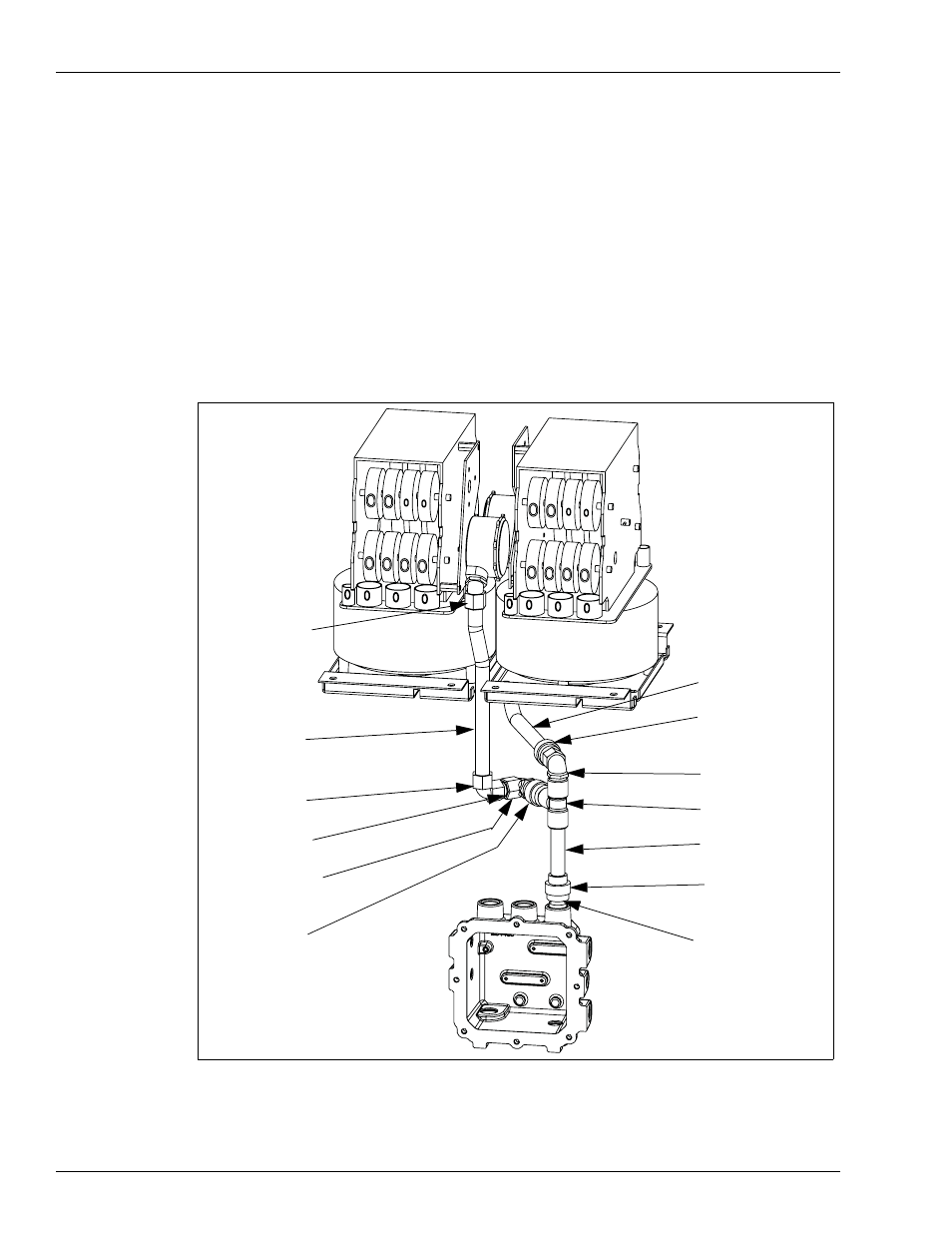

Figure 5: Dual Volume Mechanical Conduit (M06245K001, K002, and K003)
Bushing, Reducing
3/4-1/2 (K49827)
Union, conduit 1/2
inch (Q10016-04)
Conduit Nipple 1/2x 4
(R11976-57)
Conduit Tee 1/2
inch NPT (064830)
Conduit elbow 1/2x
90 deg (K42428)
Union, conduit 1/2
inch (Q10016-04)
Formed conduit
Mechanical volume
pulser grade 2
(M05293B001)
Formed conduit
Mechanical volume
pulser grade 1
(M05292B001)
Elbow, Conduit 1/2x
45 deg (025015)
Conduit elbow 1/2x
90 deg (K42428)
Conduit Nipple
1/2 Inch (R11976-
43)
Elbow, Conduit 1/2x
90 deg (025045)
Union, conduit 1/2
inch (Q10016-04)
