Terminal Block ID
System and Pump/Dispenser Wiring
Terminal Block ID Diagram

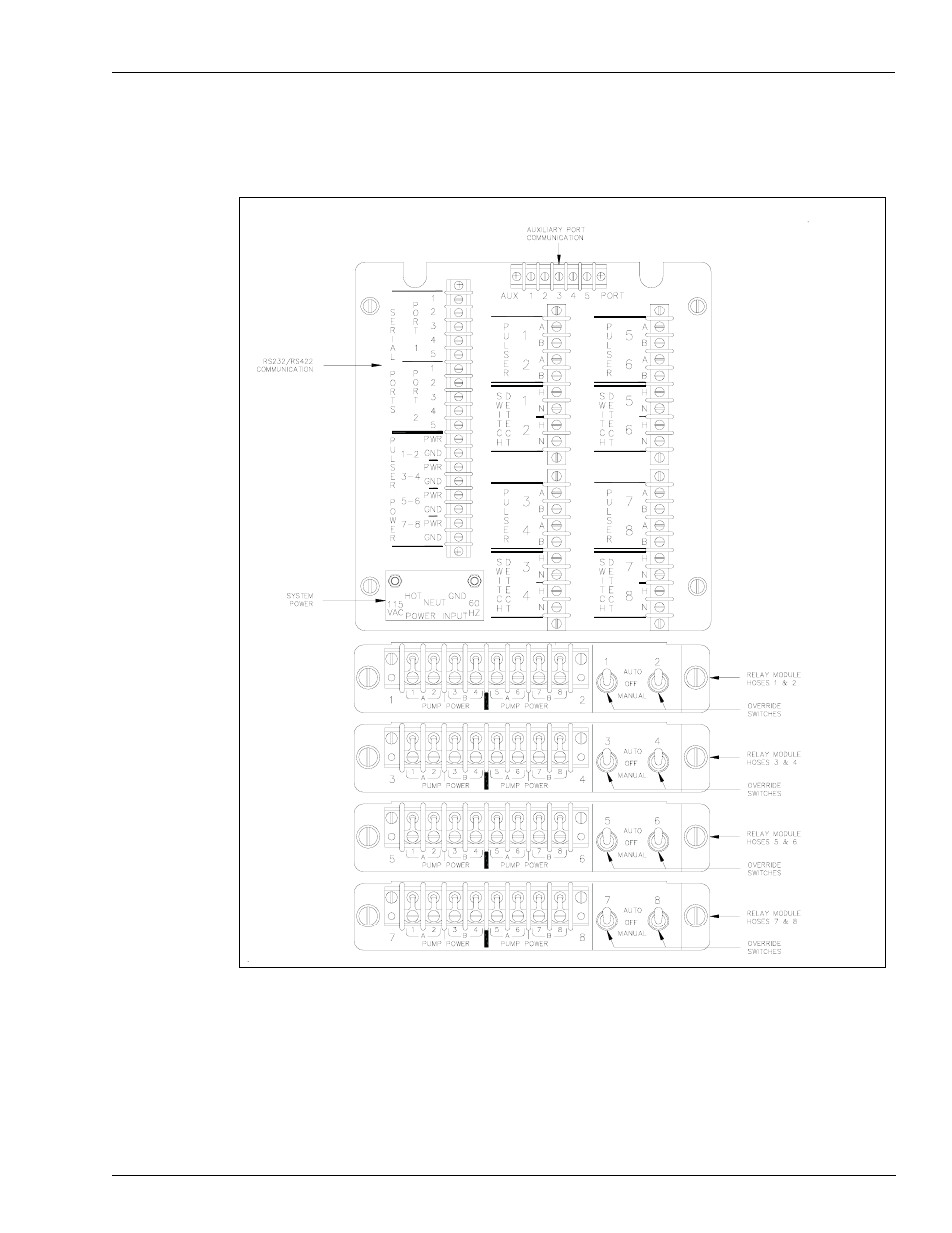

Figure 4-1: Terminal Block ID Diagram
Notes:1) The terminal blocks shown above are located in the post.
2) Red decals indicate AC wiring, black decals indicate DC wiring.
3) Standard terminal block configuration is shown above. In pedestals with receipt
printers, the upper terminal block plate is mounted back-to-back with the relay
modules.
