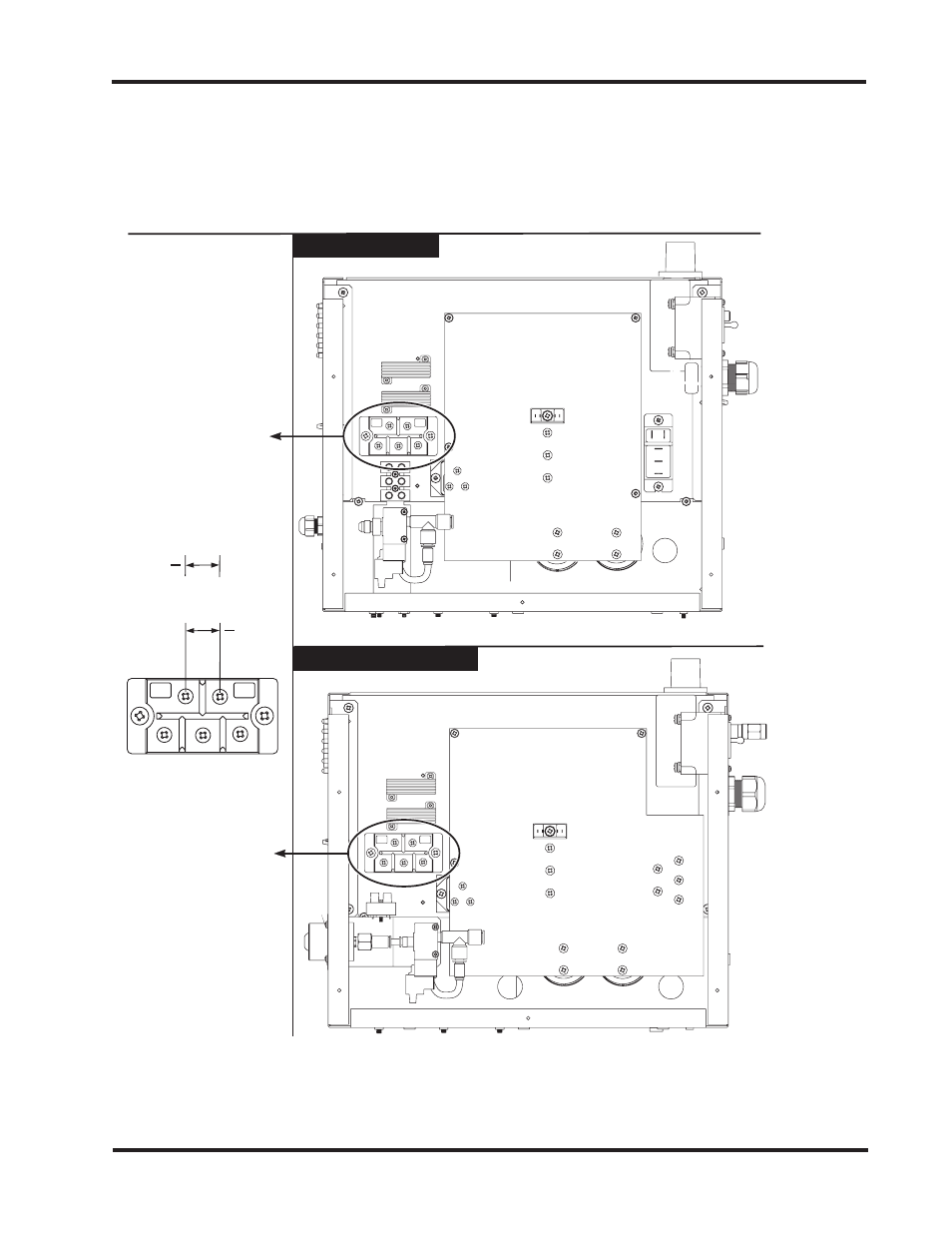

Resistance Check #3 - Figure 3-5
•
Check resistance across output diode bridge.
Figure 3-5 Resistance Check #3 - Output Diode Bridge
6 to 9 K
Ω
4 to 7 K
Ω
