MAINTENANCE
3-29
powermax
600
Service Manual
Air Filter Element Replacement (continued)
•
Install the power supply cover.
•
Connect electrical power.
•
Connect gas supply.
Installation - Refer to Figure 3-13.
Install the new filter element into the filter housing.
Secure with screw and retainer.
Install the filter bowl and O-ring into the filter housing.
Push the pressure line fully into the hose fitting.
Install the drain hose into the grommet.

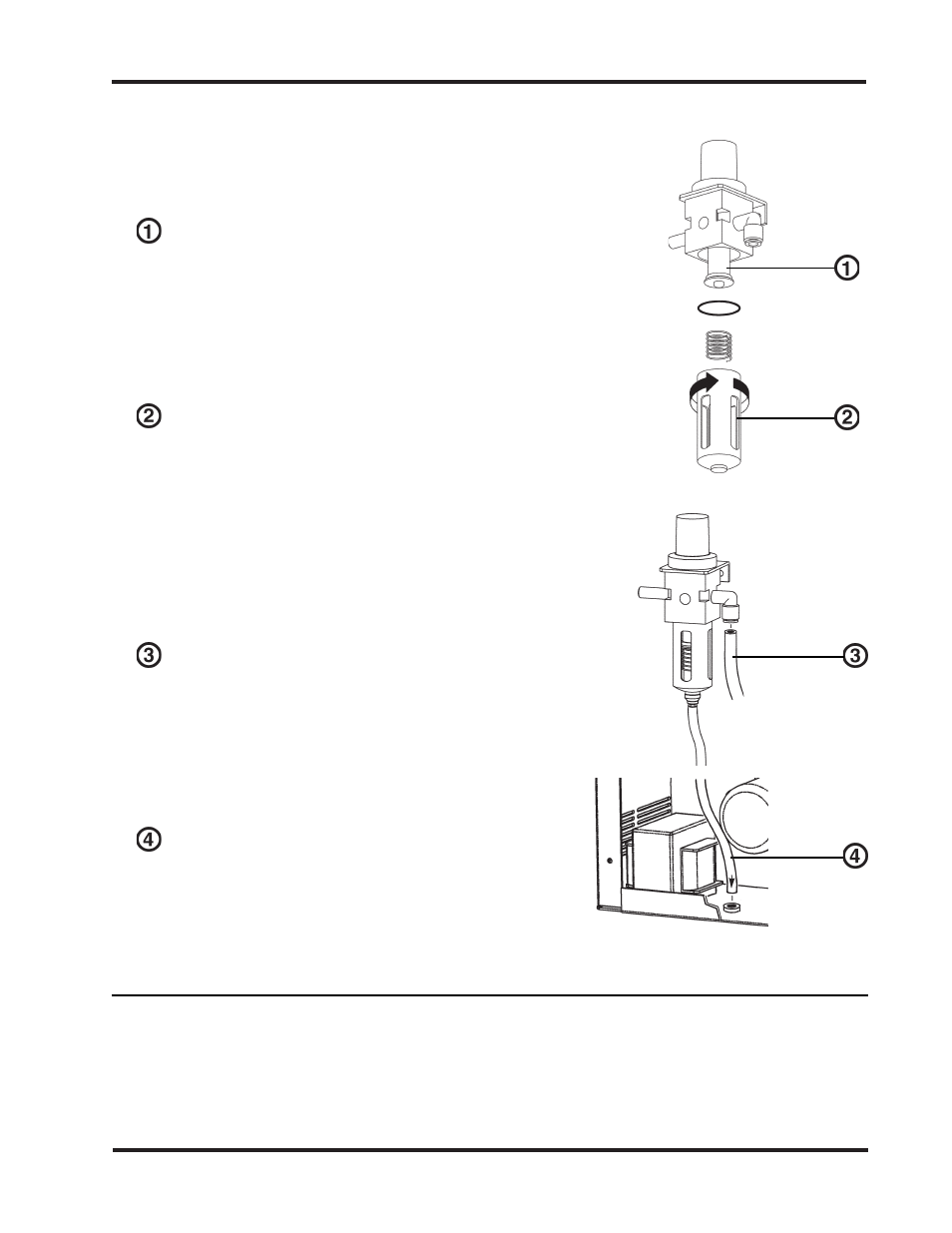

Figure 3-13 Air Filter Element Installation
