Page 72: Power supply – heat sink assembly
Advertising
5-6
PARTS LIST - 208-240/480V
powermax
600
Service Manual
Part
Item
Number
Description
Designator
Qty.
1
109088
Output diode
D2
1
2
009849
Resistor, 20 OHM
2
3
109080
IGBT, pilot arc
Q3
1
4
005222
Temp switch
TS1
1
5
109079
IGBT module, 480V
Q2
1
109183
IGBT module, 208-240V
Q2
1
6
009849
Resistor, 20 OHM
1
7
109175
Input diode bridge, 480V
D18
1
-
109174
Input diode bridge, 208-240V
D18
1
8
041652
Power PCB, 480V
PCB2
1
-
041650
Power PCB, 208-240V
PCB2
1
9
008903
Thermal pad
3
10
027662
Thermal grease, 5 oz. tube
5 places
11-99

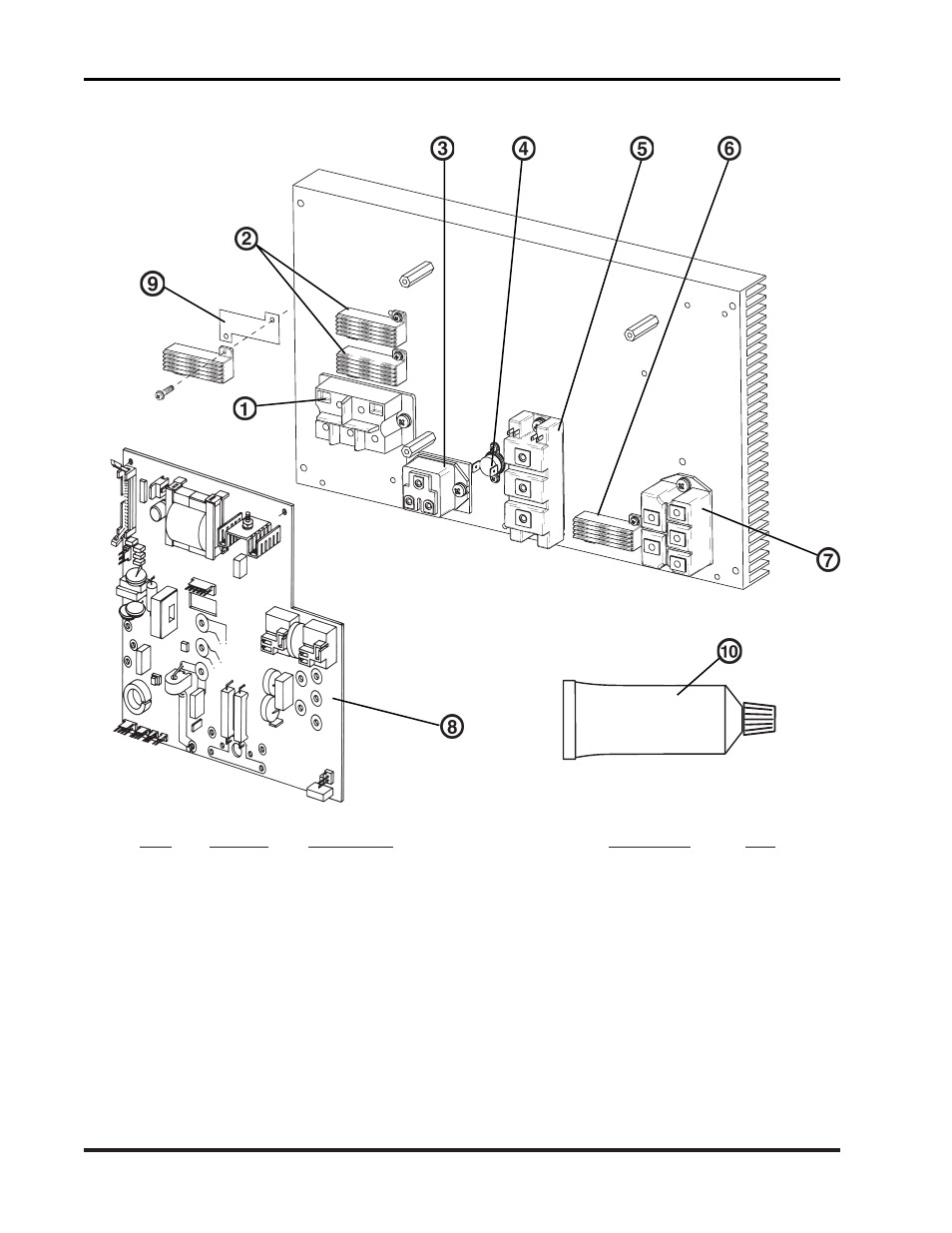

POWER SUPPLY – HEAT SINK ASSEMBLY
129528
DC-120
PMX600.28
