Page 64: Power supply – heat sink assembly
Advertising
4-6
PARTS LIST - 400/230V CE
powermax
600
Service Manual
Part
Item
Number
Description
Designator
Qty.
1
109088
Output diode
D2
1
2
129406
EMI suppression capacitor
1
3
009849
Resistor, 20 OHM
2
4
109080
IGBT, pilot arc
Q3
1
5
005222
Temp switch
TS1
1
6
109079
IGBT module
Q2
1
7
009849
Resistor, 20 OHM
1
8
109067
MOV
1
9
109090
Input diode bridge, 400V
D1
1
-
109134
Input diode bridge, 230V
D1
1
10
041568
Power PCB, 400V
PCB2
1
-
041607
Power PCB, 230V
PCB2
1
11
008903
Thermal pad
3
12
027662
Thermal grease, 5 oz. tube
5 places
11-99

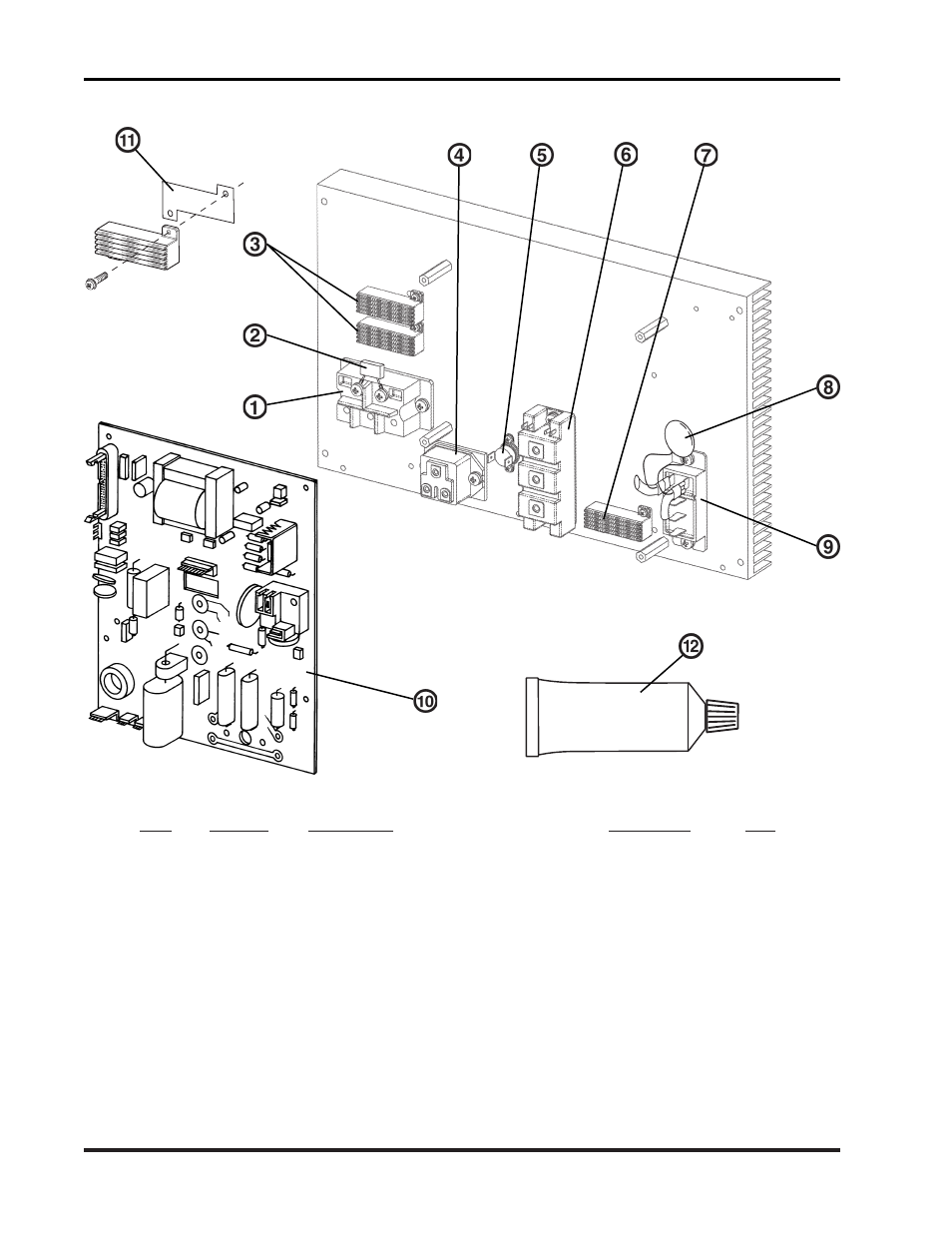

POWER SUPPLY – HEAT SINK ASSEMBLY
DC-120
PMX600.28
