Infloor Electric Cable Series 386 - Manual (Page 24)

IOM-INF-Cable 1434 24 of 36

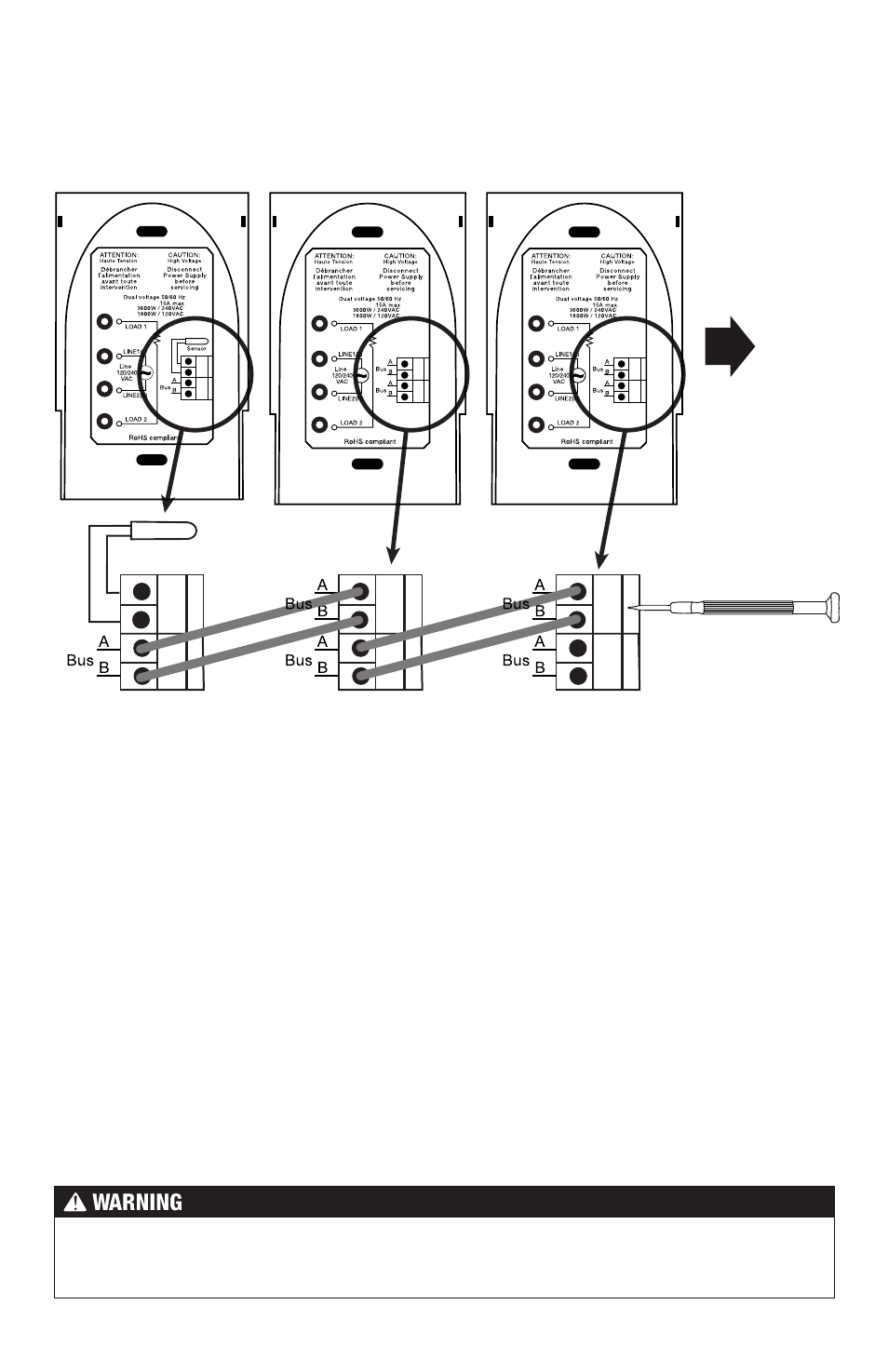

Diagram for connection of signal wire between Infloor Control and Relays
Sensor Sensor
120/240 VAC
Infloor Relay
120/240 VAC
Infloor Relay
Up to 10
Infloor Relays
can be connected
to one Infloor
Control
120/240 VAC
Infloor Control
Observe polarity when connecting relays
All electrical work must be done by a qualified licensed electrician in accordance with local
building and electrical codes, and the National Electrical Code (NEC), especially Article
424 of the NEC, ANSI/NFPA70 and Section 62 of CEC Part 1.
