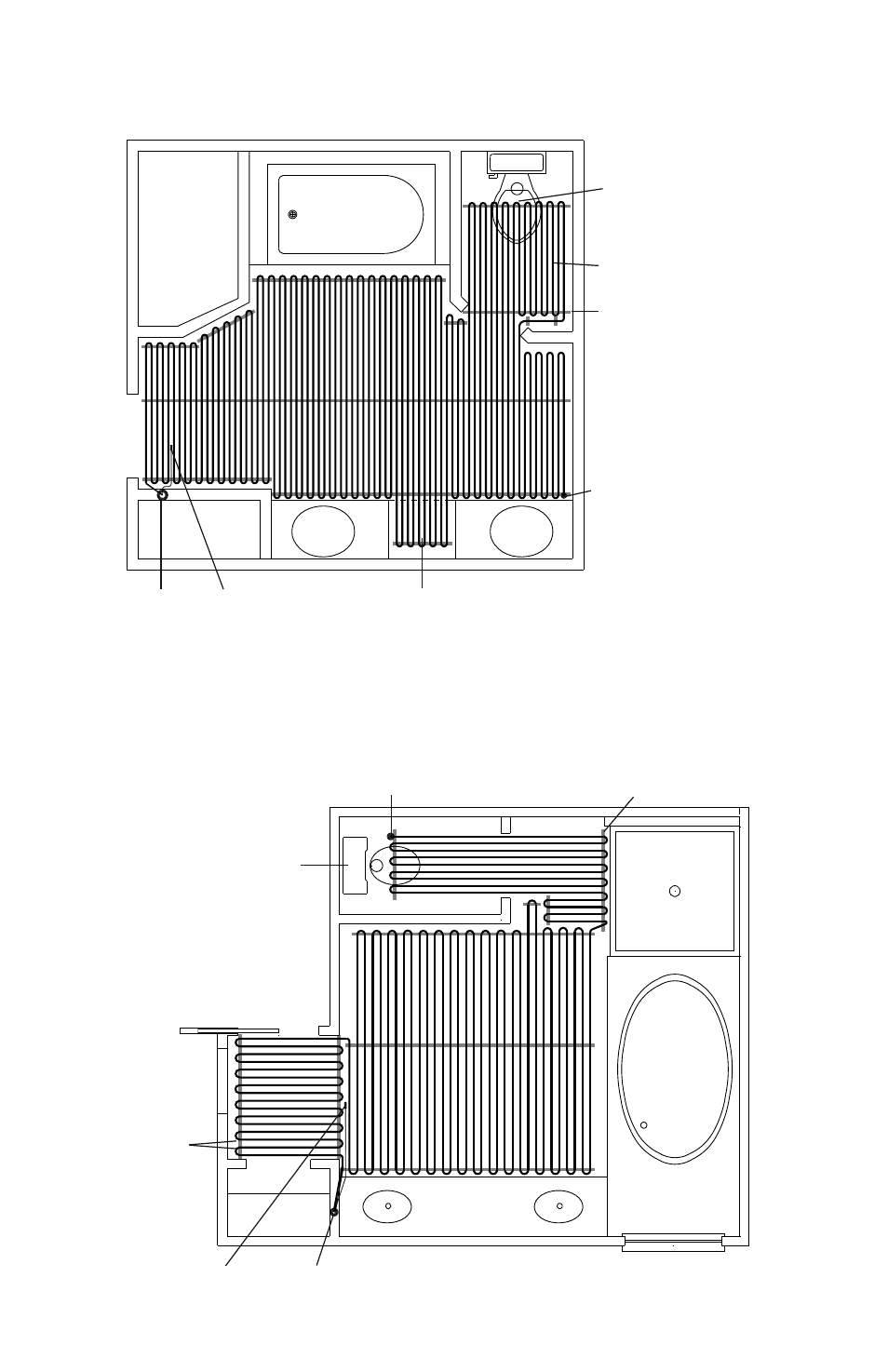

Master Bathroom (normal heat loss, framed floor construction)
One zone, 120 volts: One cable. 35 ft. of Wire Strap, or two 25-ft. rolls.
Vanity
Vanity
Toilet
Bath Tub
Cable end
Install cables
at least 6” away
from toilet rings
Wire Strap
Control
Floor Sensor
1 spool 100 ft
2
3” spacing
counter open to floor
Master Bathroom
(normal heat loss, framed floor construction)
One zone, 120 volts: One cable. 24 ft. of strap, or one 25-ft. roll.
Toilet
1 spool
80 ft
2
3” spacing
Cable end
Install cables
at least 6” away
from toilet rings
Control
Floor Sensor
Bath Tub
Shower
Dual Vanity
Wire Strap
