IOM-INF-Cable 1434 26 of 36
Appendix: Sample Layouts
Sink
Counter top and cabinetry
Counter top and cabinetry
Island
Zone 1a
Zone 1b
Zone 2
Zone 1
Control
Zone 2
Control
Zone 2
Sensor
Zone 1
Sensor
1 spool
70 ft
2
3” spacing
1 spool
240 ft
2
3.5” spacing
Cable end
Cable end
1 spool
120 ft 2
3” spacing
Wire Strap

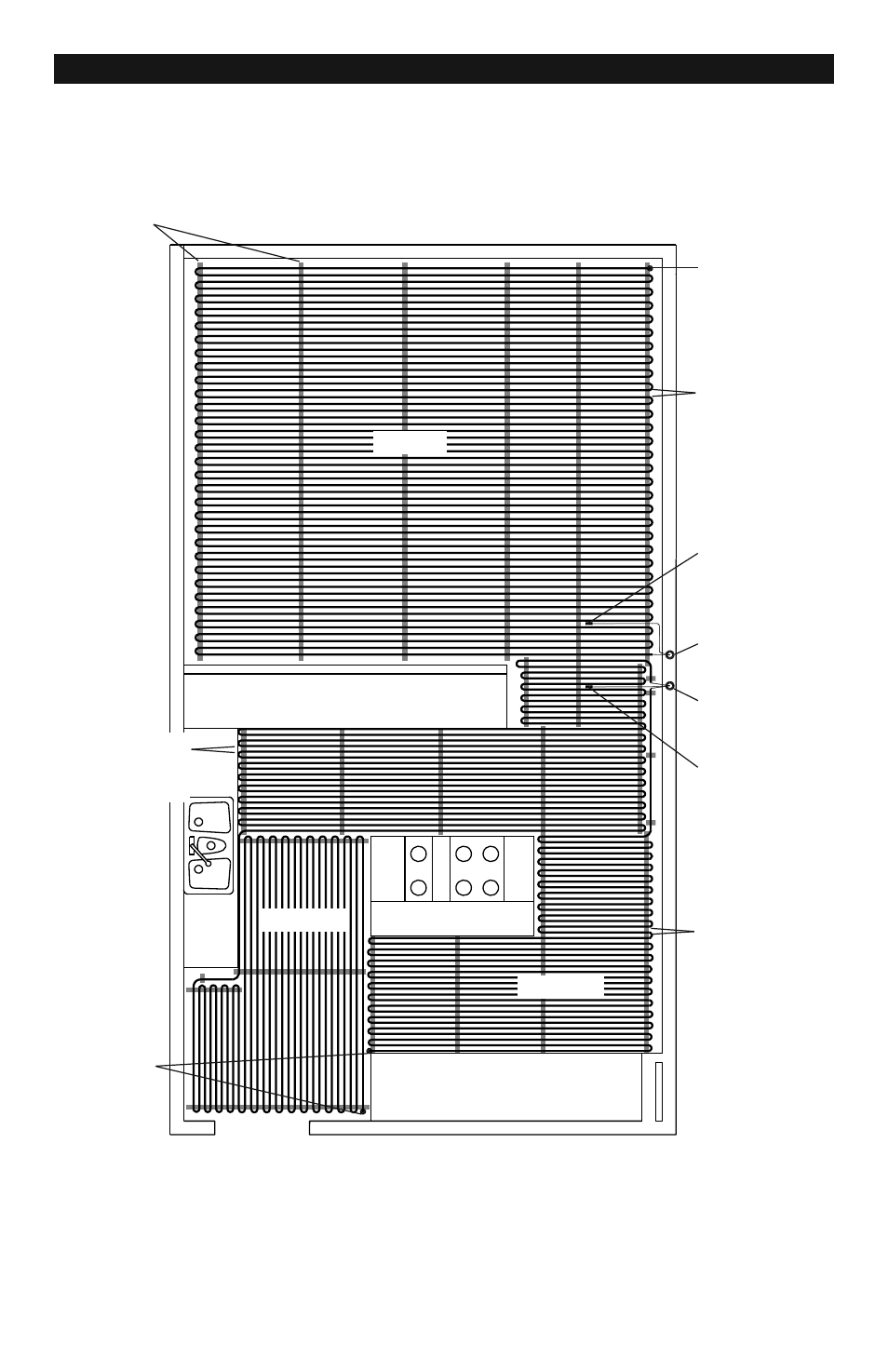

Kitchen and Family Room (normal heat loss, slab on grade with insulation)
Two zones, 240 volts: Three cables. 190 ft. of Wire Strap, or eight 25-ft. rolls.
