5 Instrument homepage
21
© Copyright K-Patents 2014. All rights reserved.
5.3.2 Optical image

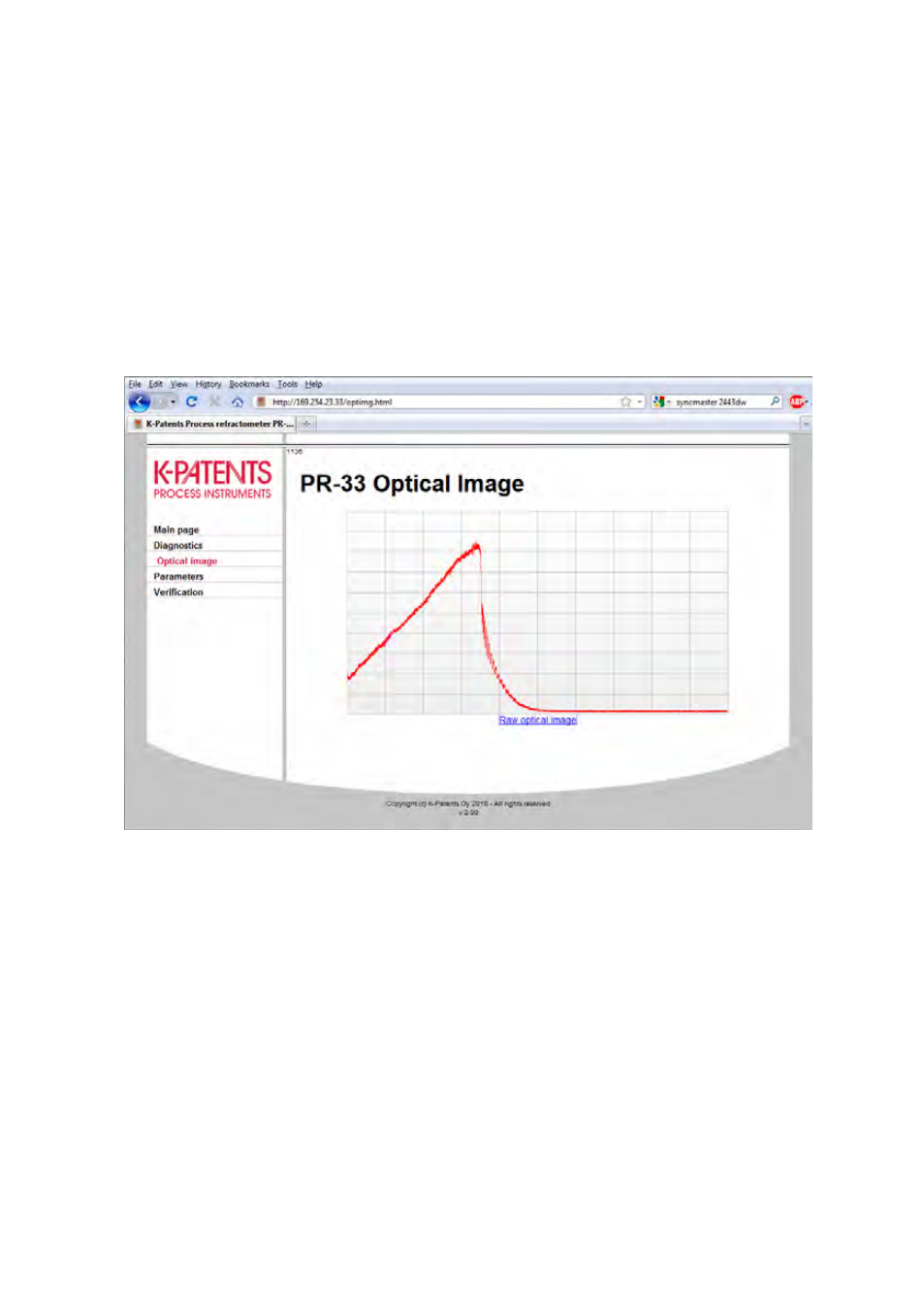

The raw optical image (figure 5.5) which contains all optical information can be seen by
clicking on the
Optical image
link on the left panel on the Diagnostics page.
The optical image can be downloaded as a file by clicking on the caption (
Raw optical
) of the image. This file can be used by K-Patents for troubleshooting purposes.
Figure 5.5
Raw optical image
