Bin Thermostat
1. Remove bin thermostat bulb from its shipping
position (on side of control box).
2. Remove the top panel of the ice machine.
3. Route the thermostat across the top of the ice
machine to the chute (packed separately).
4. Route thermostat bulb between plastic chute
and opening in front panel for the chute.
5. Insert cable tie mounts into holes in bottom of
chute.
6. Insert bulb of thermostat through loops in cable
tie mounts, pull loops to secure bulb.
7. Position excess capillary tube so that it is above
the control box, not in chute or machine
compartment.
ICE CHUTE
The ice chute is packed separately, and must be
connected to the ice machine after it has been
positioned on the ice storage bin.
1. Position the chute in front of the ice machine.
2. Install thermostat (see above).
3. Insert chute into hole in bin top.
4. Align chute cut out with plastic spout of ice
machine.
5. Place cover on chute - lip on cover will insert
behind front edge of top panel.
6. Return all panels to their original positions.
MAR1400 & MAR2000
December 2000
Page 13

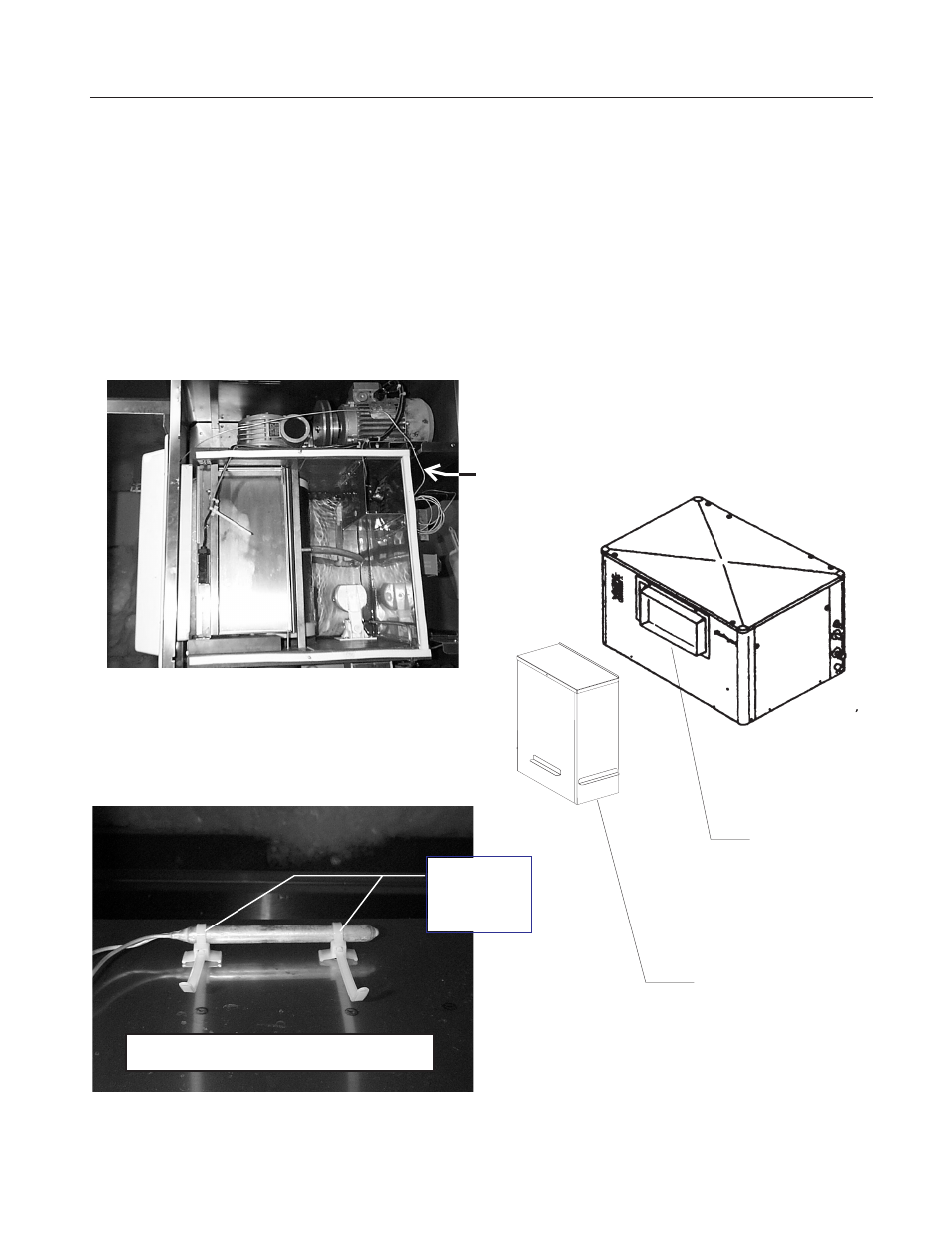

Top View of Unit, Reservoir Cover Removed
Thermostat
Capillary Tube
Thermostat
Mounting
Cable Ties
Plastic
Spout
Ice Chute
View of inside of chute from the top.
