1-31
[Sysname-hwping-administrator-tcpprivate] history-records 10
# Start the test.
[Sysname-hwping-administrator-tcpprivate] test-enable
# Display test results.
[Sysname-hwping-administrator-tcpprivate] display hwping results administrator tcpprivate
HWPing entry(admin administrator, tag tcpprivate) test result:
Destination ip address:10.2.2.2
Send operation times: 10 Receive response times: 10
Min/Max/Average Round Trip Time: 4/7/5
Square-Sum of Round Trip Time: 282
Last complete test time: 2000-4-2 8:26:2.9
Extend result:
SD Maximal delay: 0 DS Maximal delay: 0
Packet lost in test: 0%
Disconnect operation number: 0 Operation timeout number: 0
System busy operation number: 0 Connection fail number: 0
Operation sequence errors: 0 Drop operation number: 0
Other operation errors: 0
[Sysname-hwping-administrator-tcpprivate] display hwping history administrator tcpprivate
HWPing entry(admin administrator, tag tcpprivate) history record:
Index Response Status LastRC Time
1 4 1 0 2000-04-02 08:26:02.9
2 5 1 0 2000-04-02 08:26:02.8
3 4 1 0 2000-04-02 08:26:02.8
4 5 1 0 2000-04-02 08:26:02.7
5 4 1 0 2000-04-02 08:26:02.7
6 5 1 0 2000-04-02 08:26:02.6
7 6 1 0 2000-04-02 08:26:02.6
8 7 1 0 2000-04-02 08:26:02.5
9 5 1 0 2000-04-02 08:26:02.5
10 7 1 0 2000-04-02 08:26:02.4
For detailed output description, see the corresponding command manual.
UDP Test (Udpprivate Test) on the Specified Ports
Network requirements
Both the HWPing client and the HWPing server are H3C S3100 series Ethernet switches. Perform an
HWPing Udpprivate test on the specified ports between the two switches to test the RTT of UDP
packets between this end (HWPing client) and the specified destination end (HWPing server), with the
port number set to 8000.
Network diagram

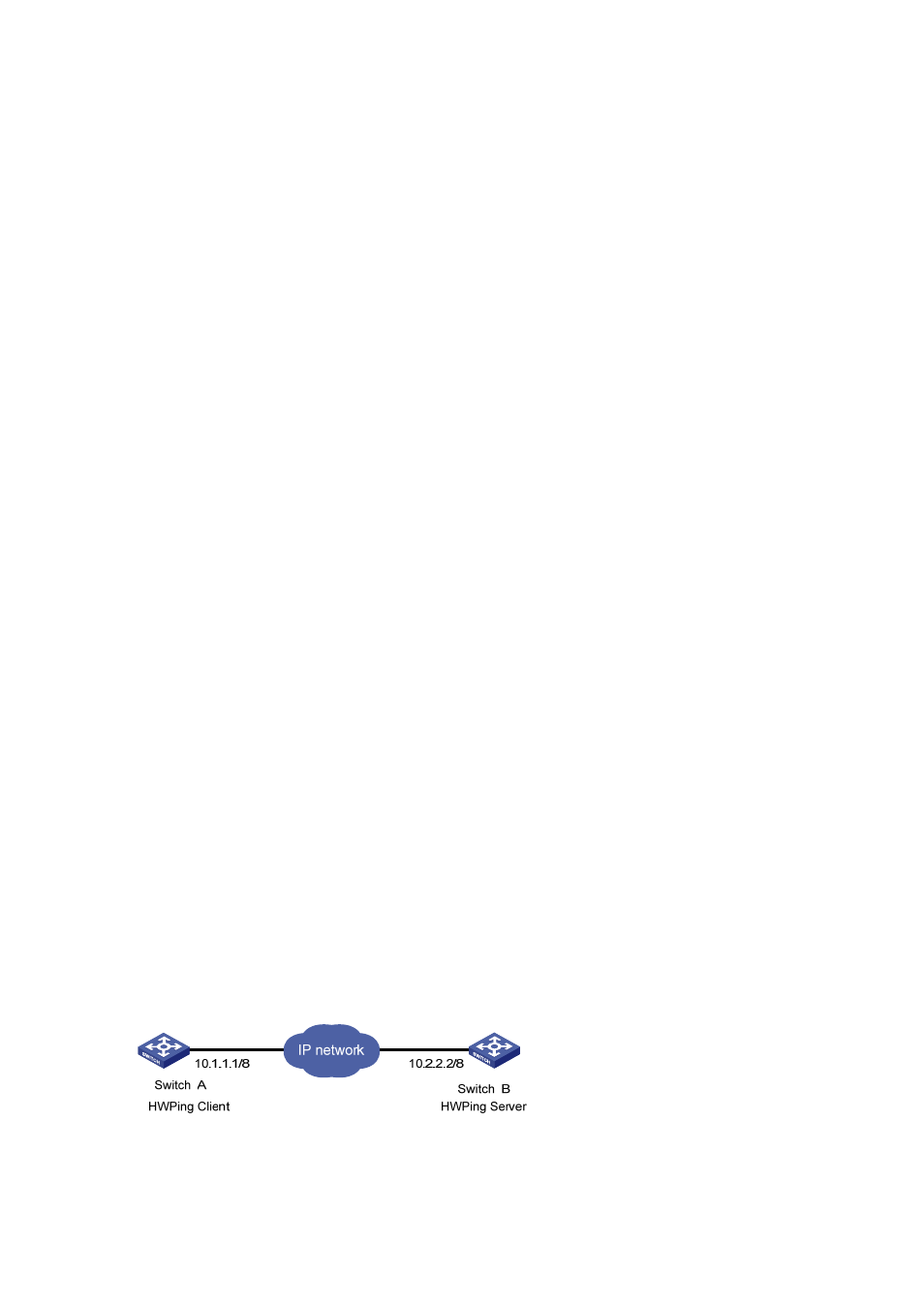

Figure 1-9 Network diagram for the Udpprivate test
Configuration procedure
z Configure HWPing Server (Switch B):
# Enable the HWPing server and configure the IP address and port to listen on.
