Table 52 Cable bundling specifications
Cable bundle diameter (mm) Space between bundles (mm)
10 80 to 150
10 to 30 150 to 200
30 200 to 300
• Do not tie cables or bundles in a knot.
• The metal parts of the crimped cold-pressed terminal blocks (such as circuit breaker) cannot
protrude beyond the blocks.
Cable routing example
Cables on the router can be routed as shown in Figure 132 .

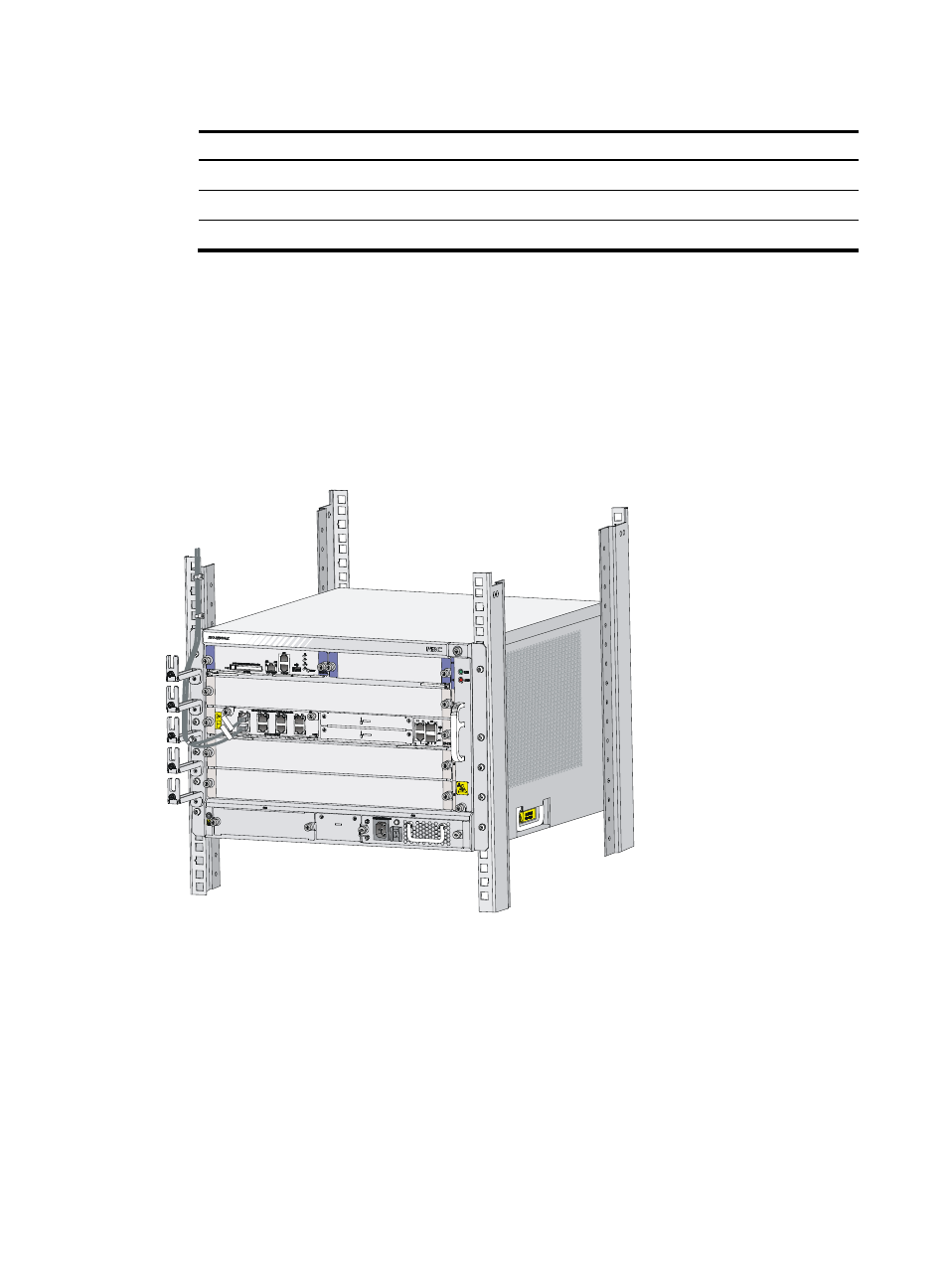

Figure 132 Routing cables
A0 1- 03 -0 1 A0 1- 03 -0 1
