Chapter 2 Setting Up the Hardware
34 Digital News Production
Connecting a Video Tape Recorder
In most situations, you connect a VTR to your system to get footage from tape.
To connect a VTR to your system:
1. Using a remote serial cable, plug one end into the top RS-422 port on the
back of the NewsroomSuite computer.
2. Plug the other end of the cable into the back of the VTR.
Connecting Audio and Video Cables to the
Breakout Box

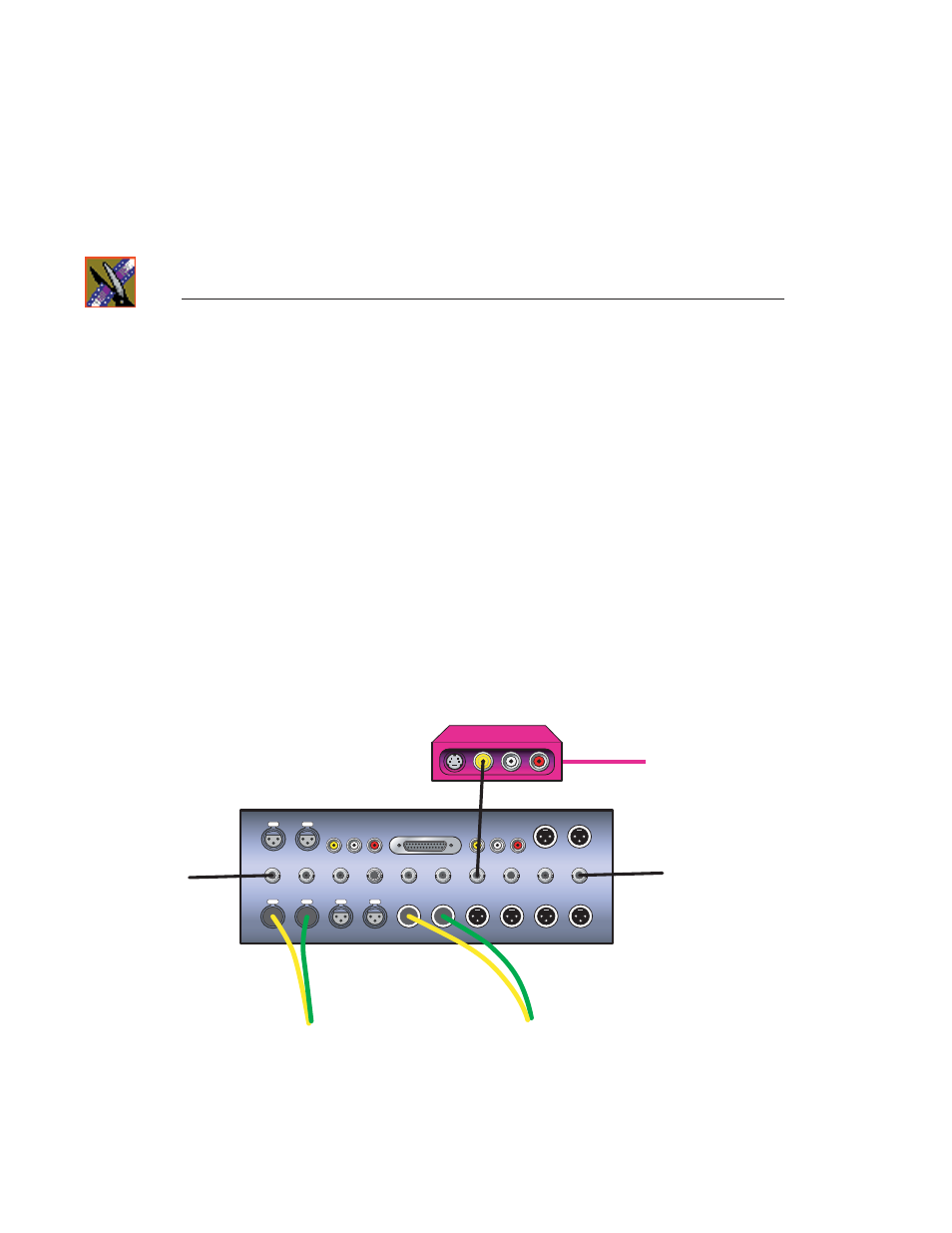

The following illustration and table details how to connect other video and
audio cables to your NewsroomSuite computer system.
Push Push Push
Push
Push
Push
Video Out
To
Video In
Audio
ATI Adapter
NewsEdit
Channel
1-2 In
Audio
Channel
1-2 Out
from VTR
to External
Monitor
