GUIDE TO INSTALLATION AND OPERATION
Kaleido-Solo | 7
3 Operating Controls and Functions

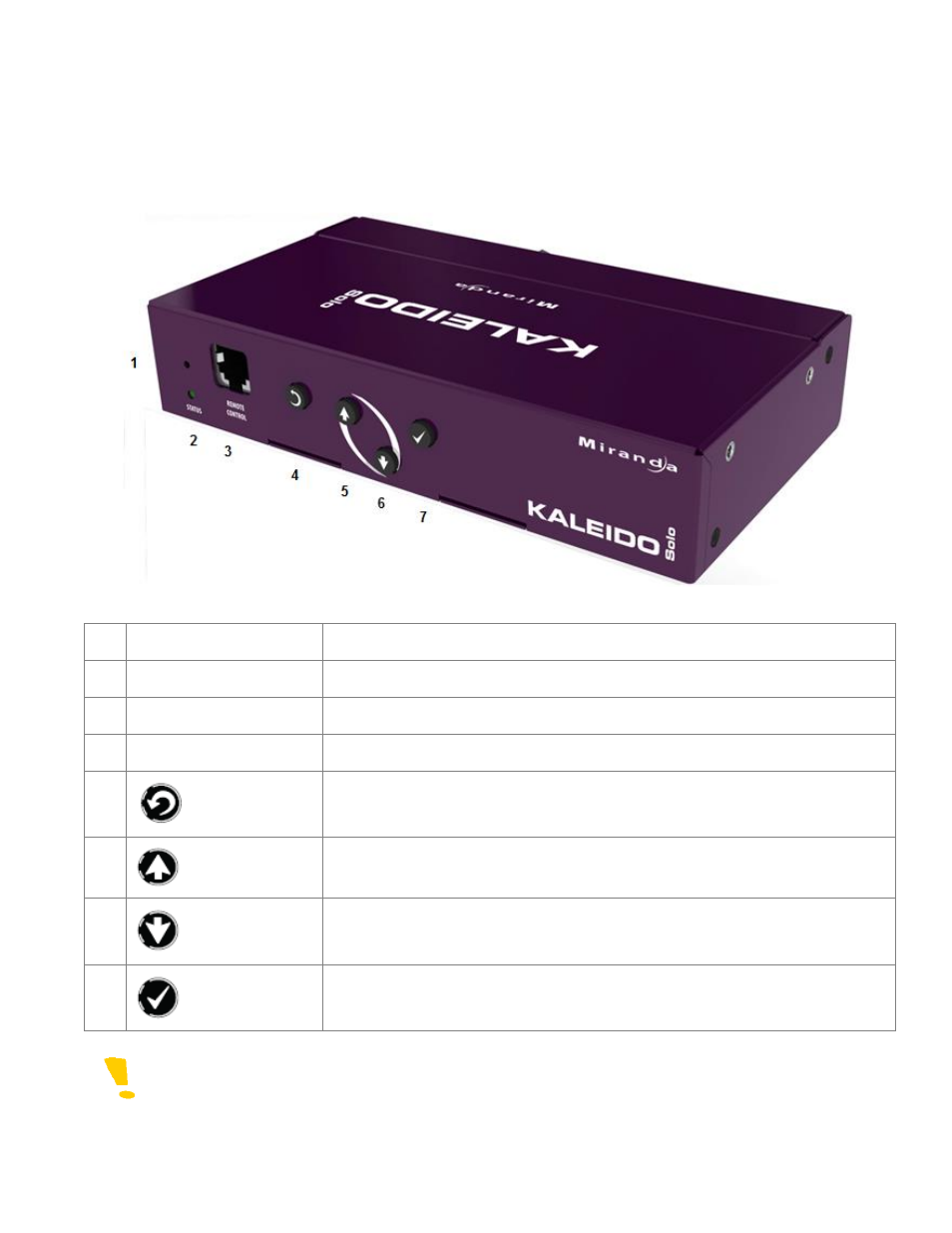

The Kaleido-Solo is configured and operated using the four buttons on the front panel to navigate through on-screen
menus displayed on the video monitor. There are also some non-menu functions for these buttons.
From left to right:
#
Label
Description
1
Reset button
2
Status
Status LED
3
Remote control
Connection with the optional Kaleido-Solo remote control (see section 15).
4
Escape
5
Up
6
Down
7
Enter
Note that you can see 2 mounting holes on the right side to mount the included metal bracket (see
section Annex 4).
