Correspondence table:
Channel 1&2
AES 1
Channel 3&4
AES 2
Channel 5&6
AES 3
Channel 7&8
AES 4
Channel 9&10
AES 5
Channel 11&12
AES 6
Channel 13&14
AES 7
Channel 15&16
AES 8
For example, if you have a Dolby E on channel 15&16 you must select AES 8 to be able to access the level and peak
information.
Note that Kaleido-Solo can extract level and peak information for only 2 simultaneous Dolby E.

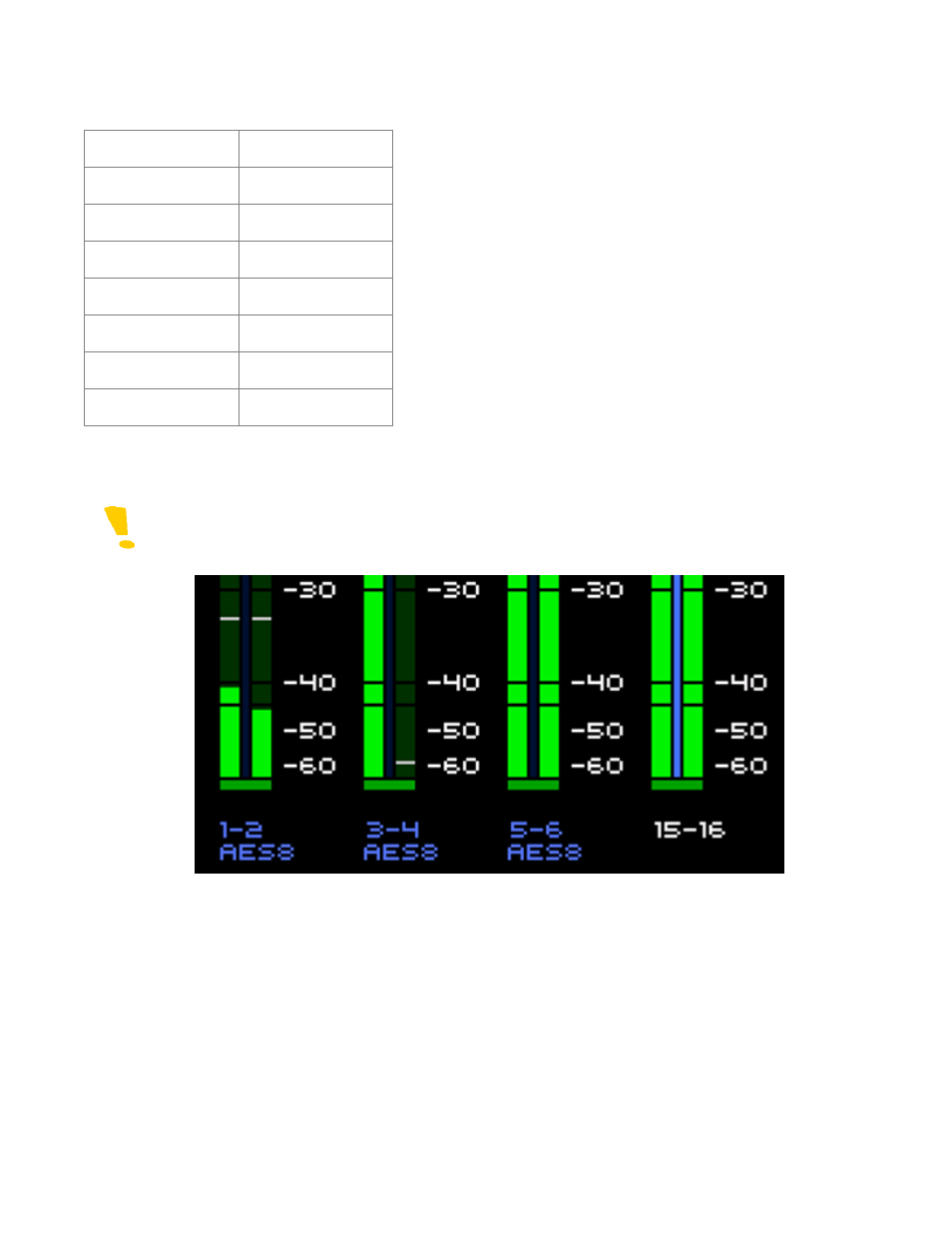

The color of ALM
‟s name is set to blue when it is set to display level and peak information from a Dolby E. The
source of this Dolby E is also represented underneath the channels.
