Connecting the fiber optic cables
1. Remove the dust plug from the SFP module if present
2. Verify that the exposed end of the optical fiber in the LC connector is clean

Carefully remove any debris if necessary.
3. Plug the LC-terminated fiber optic cable into the SFP module
Removing the fiber optic cables
1. Grasp the LC fiber optic connector that is plugged into the SFP module, and pull it straight out to disengage
the optical fiber from the SFP.

Never pull the fiber optic cable itself, as catastrophic damage may occur.
2. Insert a dust plug into the SFP module.
Removing the SFP module

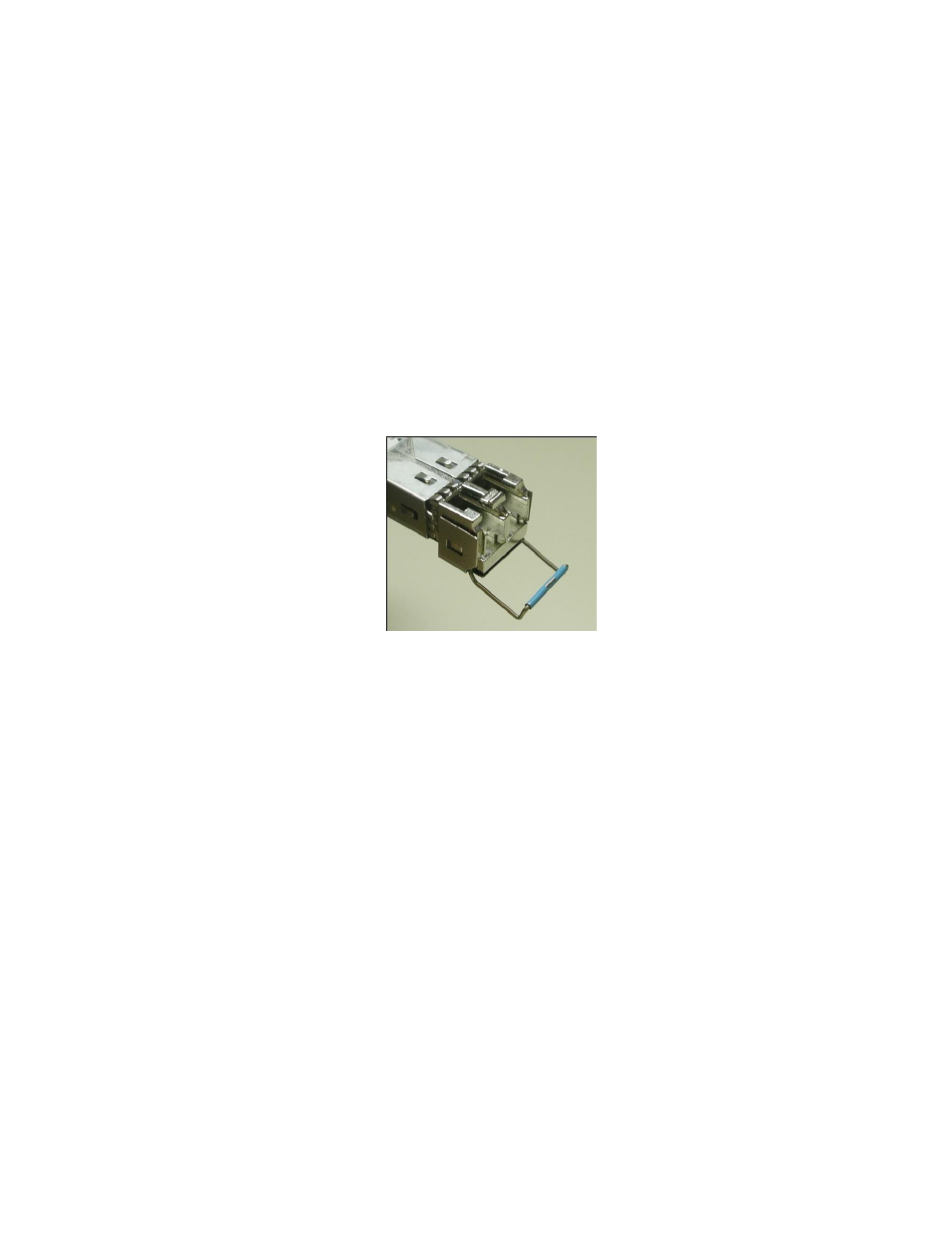

1. Move the bale clasp lever to the open position.
2. Grasp the SFP module between your thumb and forefinger, and pull it straight out of the slot.

Do NOT pull on the bale clasp lever to remove the module, as it is easily damaged

You may find that you need to wiggle the module, or perhaps push it into the slot a bit, before it will
release and slide out.
3. Insert a dust plug into the SFP module.
