5.9 Cont
our elements on f
a
ce

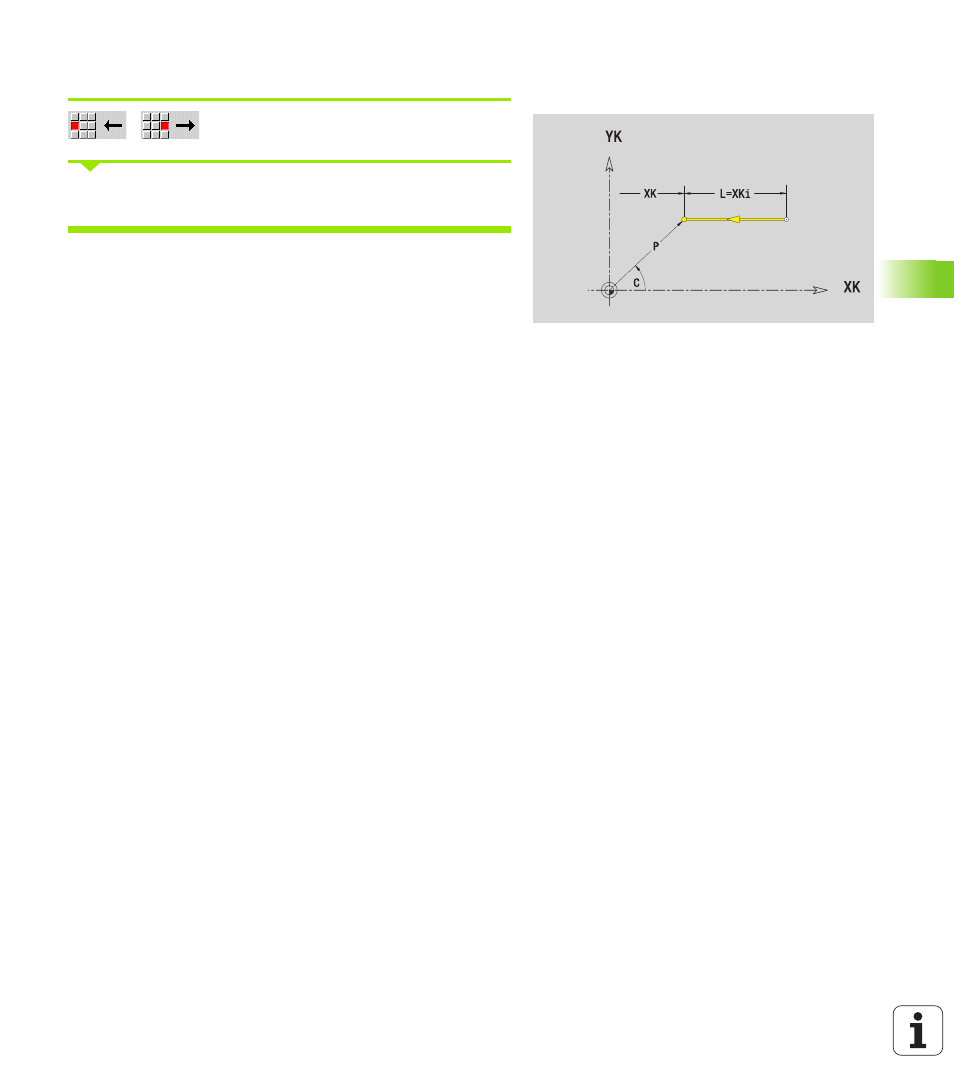

Horizontal lines on face
Select the line direction.
Enter the line dimensions and define the transition to the next
element.
In smart.Turn, ICP generates a G101.
Parameters
XK
Cartesian target point
XKi Incremental target point (distance from starting point to
target point)
C Polar target point (angle)
P Polar target point
L Length of line
F: See machining attributes on page 357
