502 Tool and technology database
7.
3 T
ool data
Thread milling tools
Select "New tool."
Select special tools.
Select special milling tools.
Select the thread milling tool.

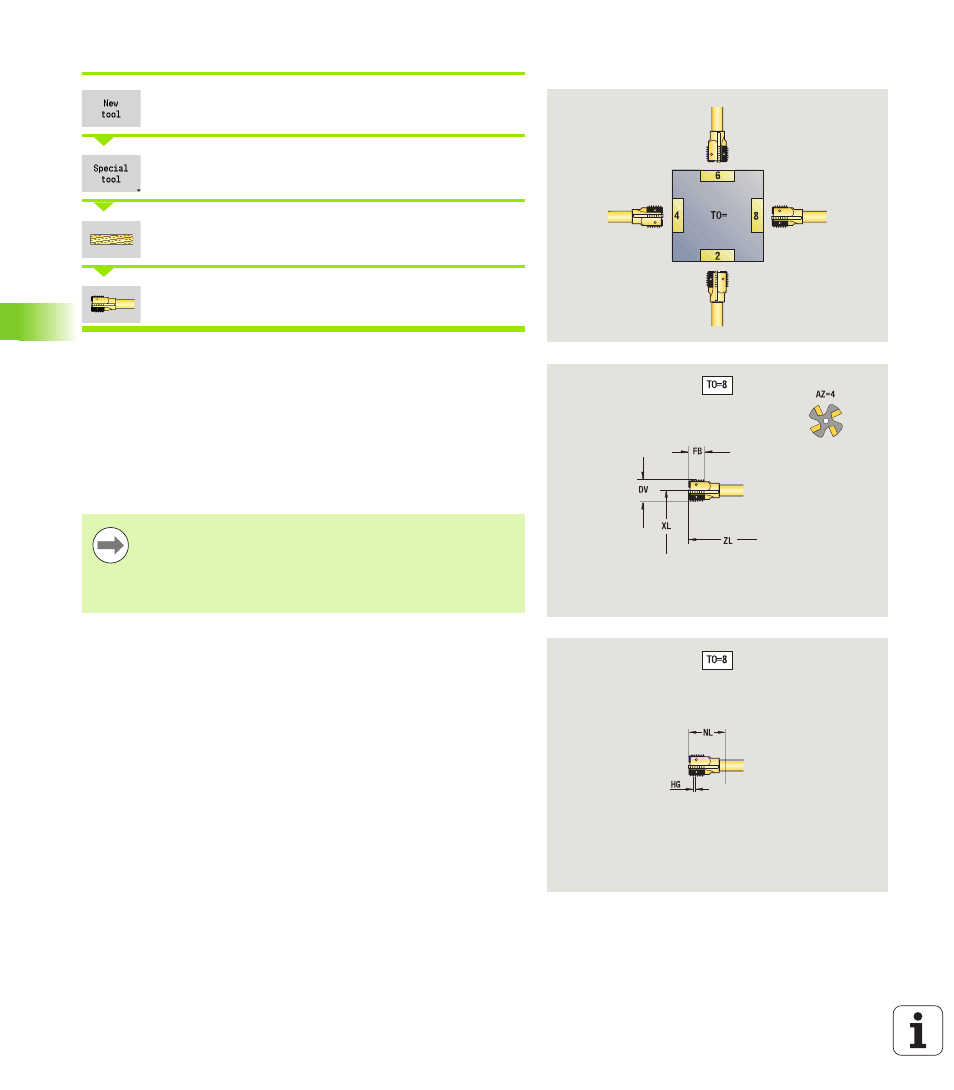

The help graphics illustrate the dimensions of the tools.
Special parameters for thread milling tools
DV
Cutter diameter
AZ Number of teeth
FB Cutter width
HG Pitch
DD Cutter diameter compensation
For further tool parameters, see page 489.
 For milling operations with constant cutting speed, the
milling cutter diameter (DV)
is used to calculate the
spindle speed.
 The number of teeth (AZ) parameter is evaluated for
G193 Feed per tooth
.
