5.15 Cont
ours in the YZ plane
Line at angle in YZ plane

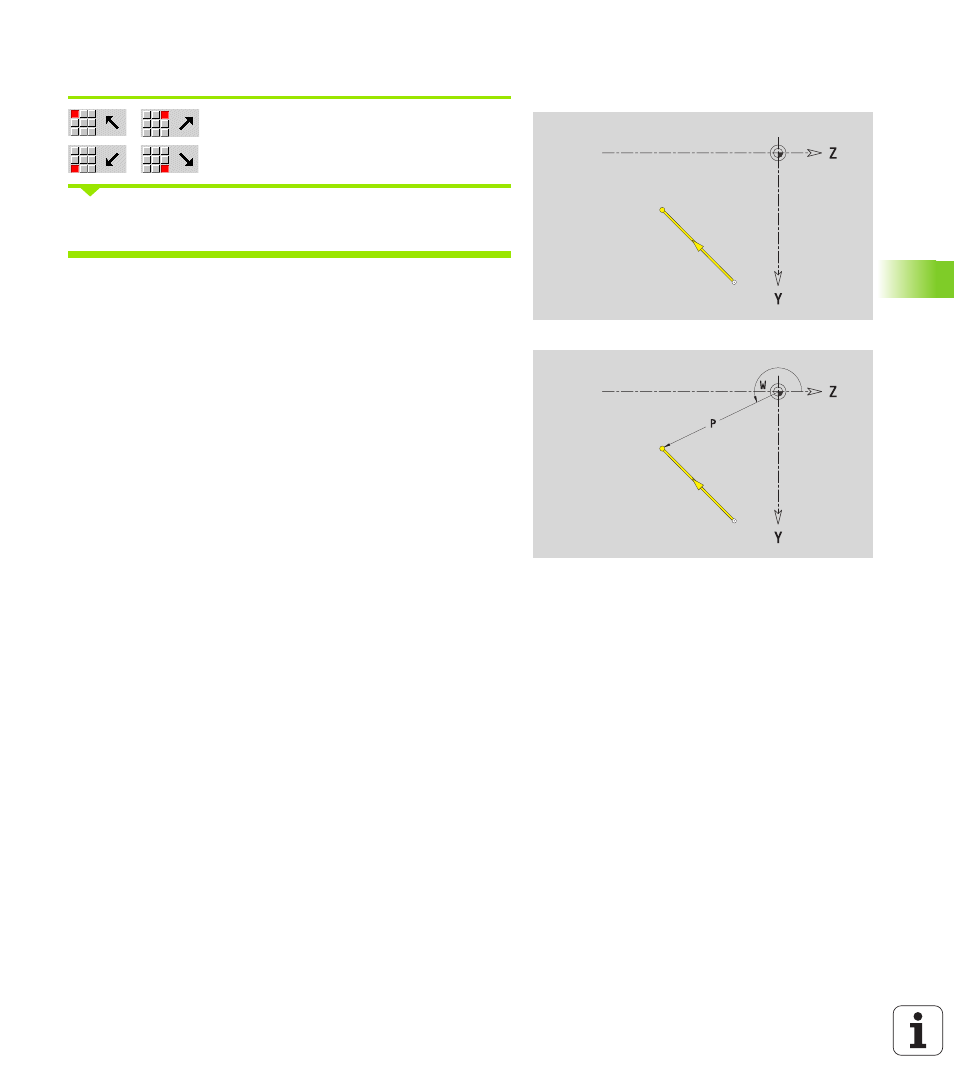

Select the line direction.
Enter the line dimensions and define the transition to the next
element.
In smart.Turn, ICP generates a G181.
Parameters
Y, Z
Target point
Yi, Zi Incremental target point (distance from starting point to
target point)
W Polar target point (angle)
P Polar target point
AN Angle to Z axis (for direction of angle, see help graphic)
L Length of line
ANn Angle to the subsequent element
ANp Angle to the previous element
F: See machining attributes on page 357
