494 Tool and technology database
7.
3 T
ool data
Thread-cutting tools
Select "New tool."
Select thread-cutting tools.

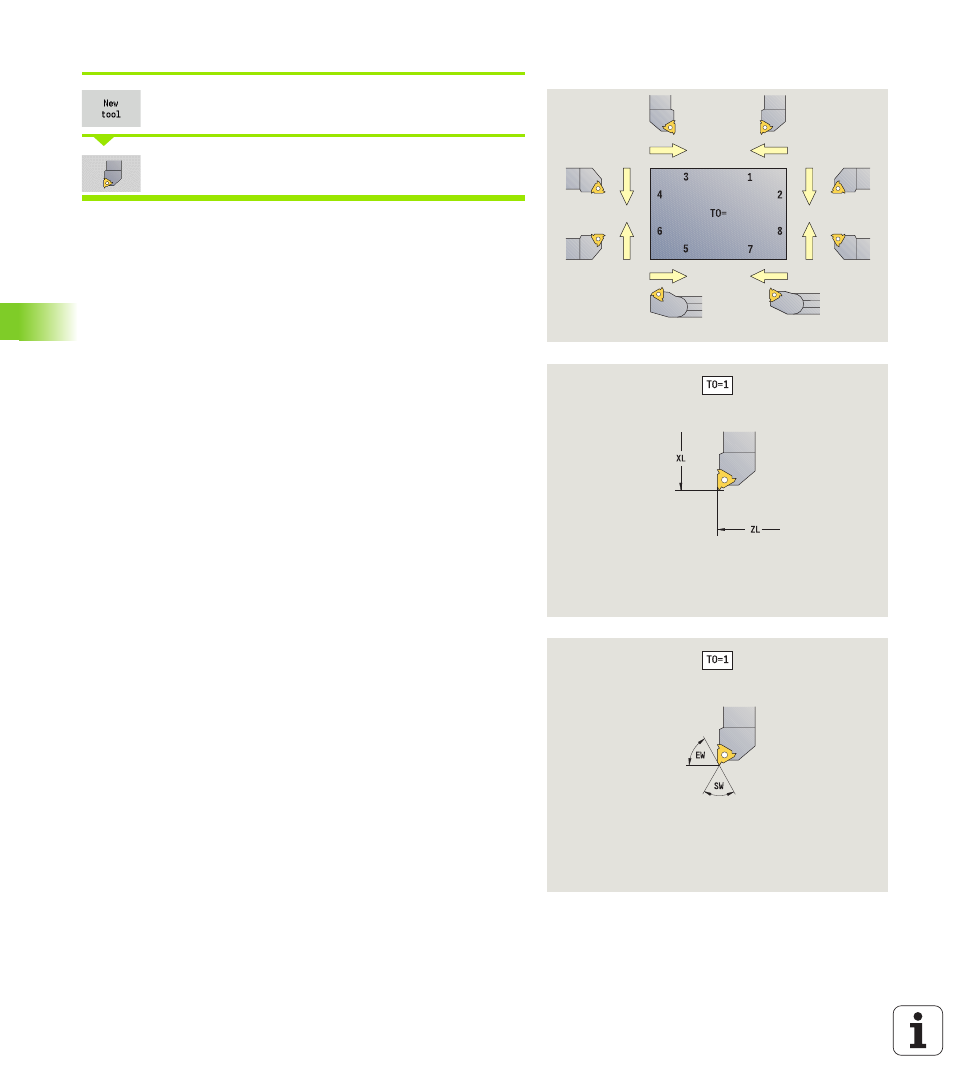

The help graphics illustrate the dimensions of the tools.
Special parameters for thread cutting tools
RS
Cutting radius
SB Cutting width
EW Tool angle (range: 0° <= EW <= 180°)
SW Point angle (range: 0° <= SW <= 180°)
DN Tool width
SD Shank diameter
ET Maximum plunging depth
NL Usable length
For further tool parameters, see page 489.
