2-75

Quadra-Chek

®

5000

Step 3

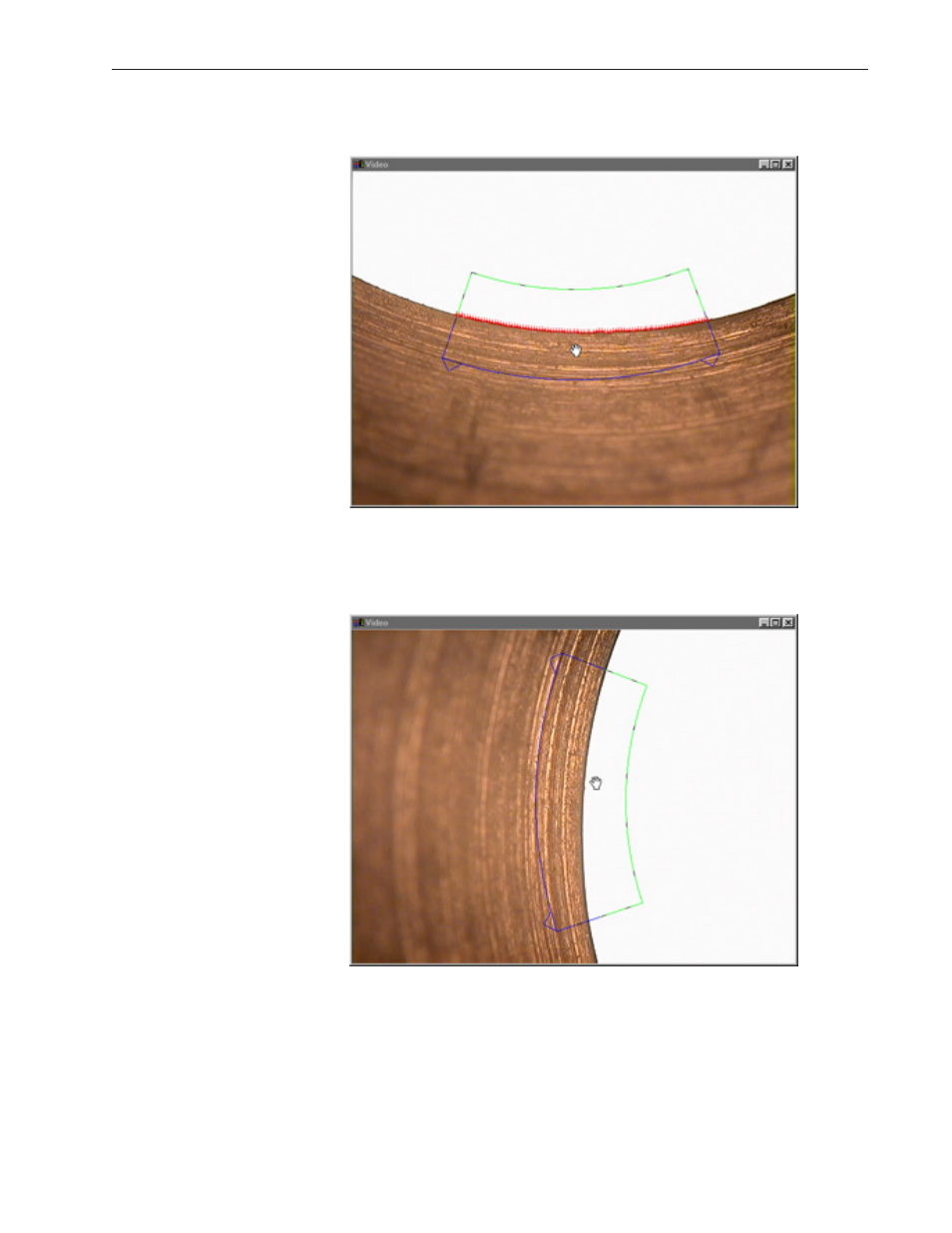

Rotate the probe tool as shown.

Step 4
Place the probe tool as shown.
