Quadra-Chek ® 5000
4-63
Random Placement
Use the random placement wizard for multiple parts on a stage without a fix-
ture.
NOTE
All parts must have the same orientation on the stage and be
square to the axes of the machine.
Before creating a random placement, create a new part program with reference
steps.
To insert reference steps in a part program
Step 1

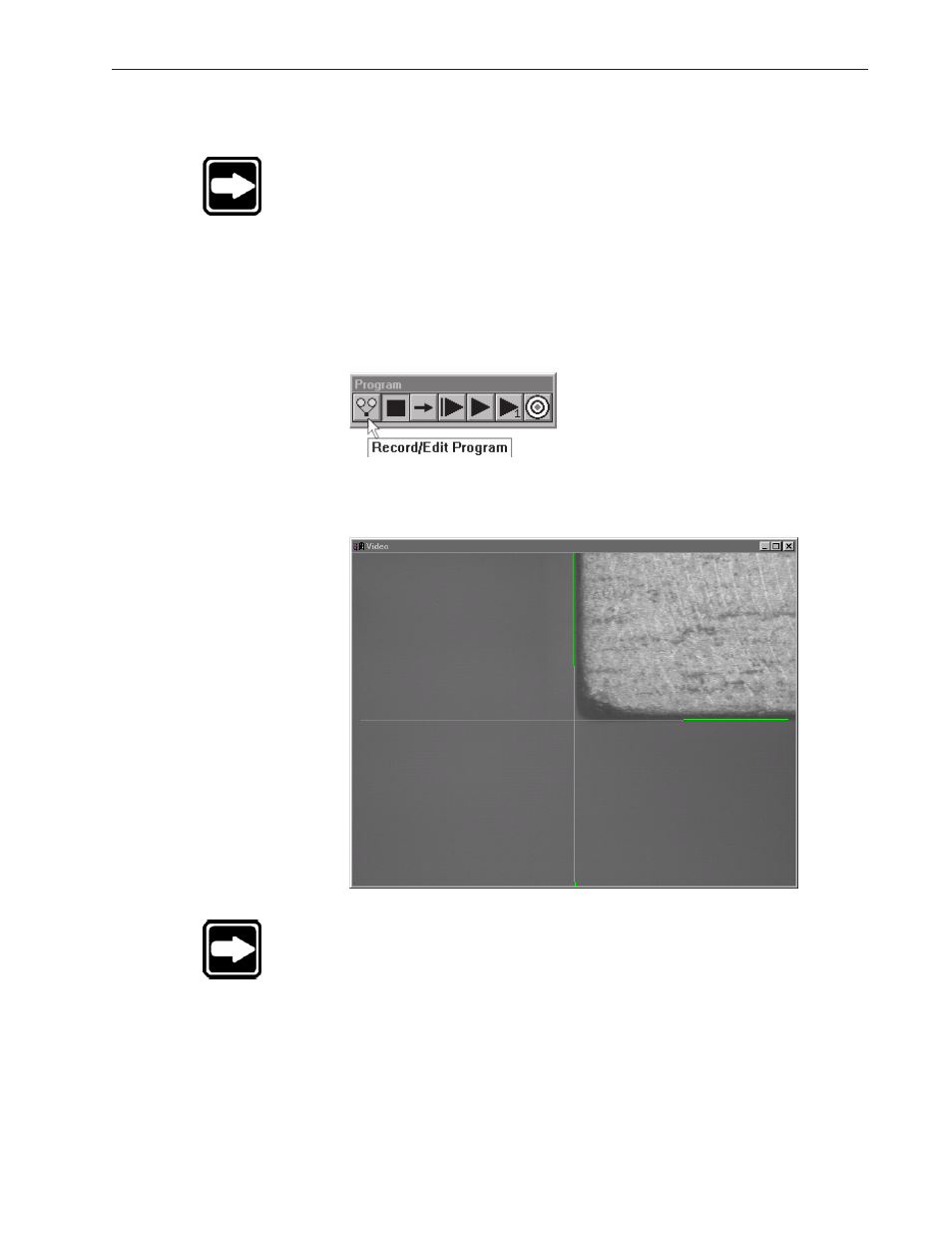

Click the record/edit button on the program toolbar.
Step 2
Position the desired reference feature as shown.
NOTE
The reference feature is a repeatable point to help the QC-5000
locate the randomly placed parts.
