6 - 77
Quadra-Chek ® 5000

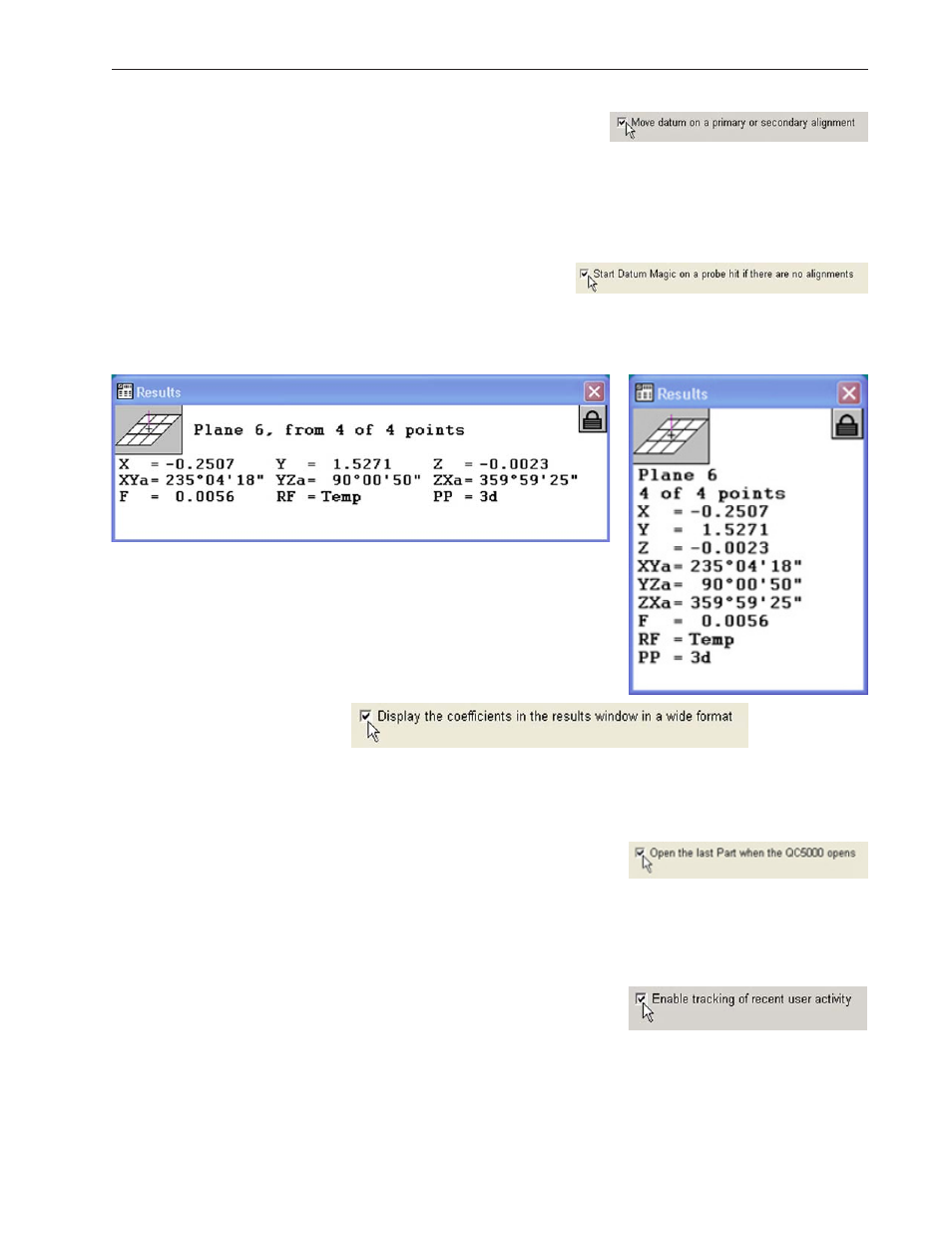

Check the Move datum on a primary... box to automatically move the datum
during primary plane measurement
and secondary alignment.
Starting Datum Magic automatically
Datum Magic can be configured to automatically establish the primary plane
and secondary alignment at the beginning of each measurement session. Check
the Start datum magic... box to start datum magic on the first probe hit if no
alignments exist.
Displaying results in wide format
The contents of the Results window can be displayed in narrow or wide format.
Check the Display the coefficients... box
to display the results window in wide
format.
Opening the last part automatically
The QC5000 can be configured to automatically open the last active part file
upon startup. Check the Open last part... box to open the last part file.
Tracking user activity
User activities such as key presses and mouse clicks can be logged to facilitate
troubleshooting and other diagnostic processes. The logged file is stored in the
Recent Activity folder at the root of the QC5000 directory.
Click the Enable tracking... box to log
user activities.
