2-45

Quadra-Chek

®

5000

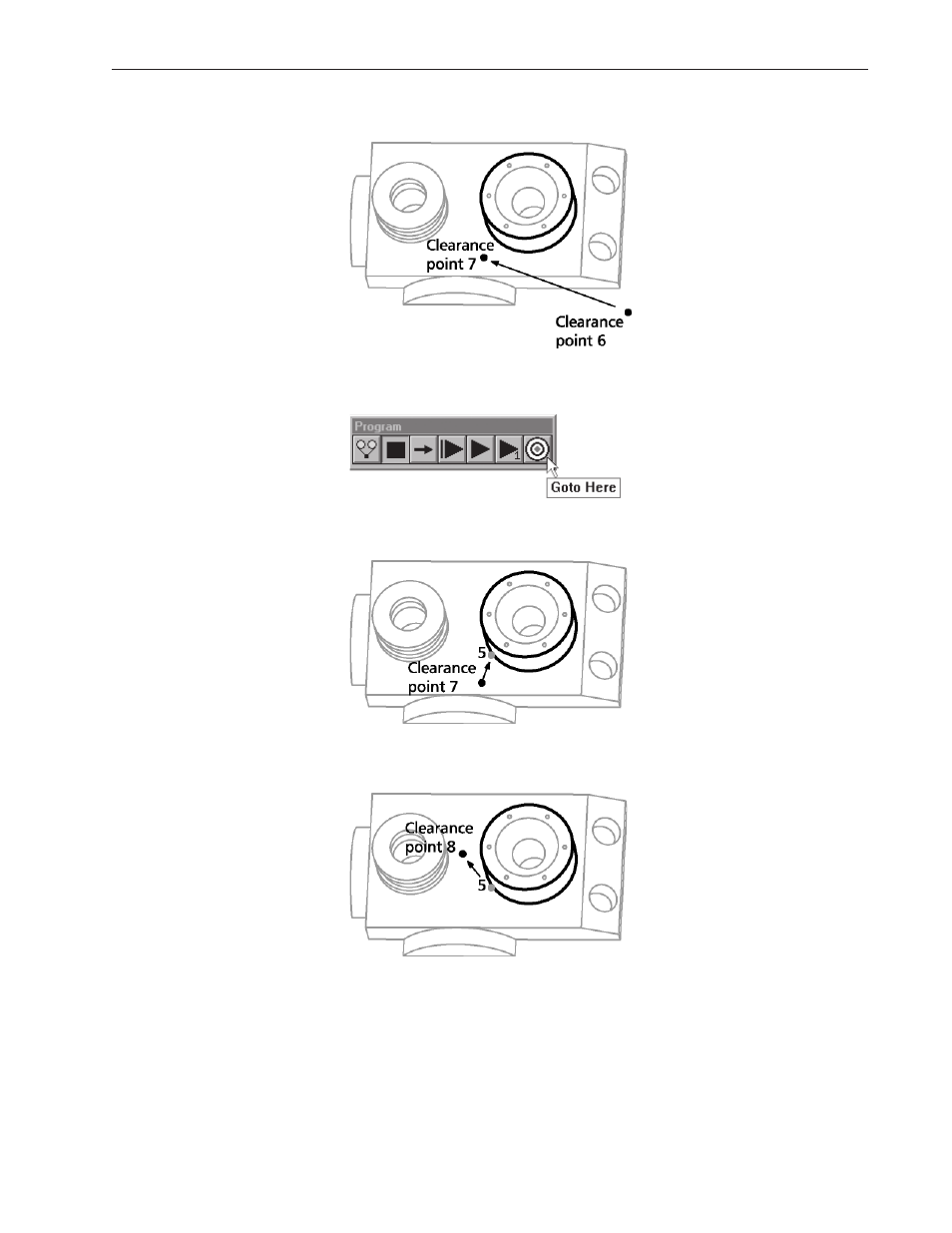

Step 19
Insert clearance point 7 as shown.

Step 20
Click the goto button on the program toolbar.

Step 21
Probe the fifth point as shown.

Step 22
Insert clearance point 8 as shown.
