2-27

Quadra-Chek

®

5000

Step 11

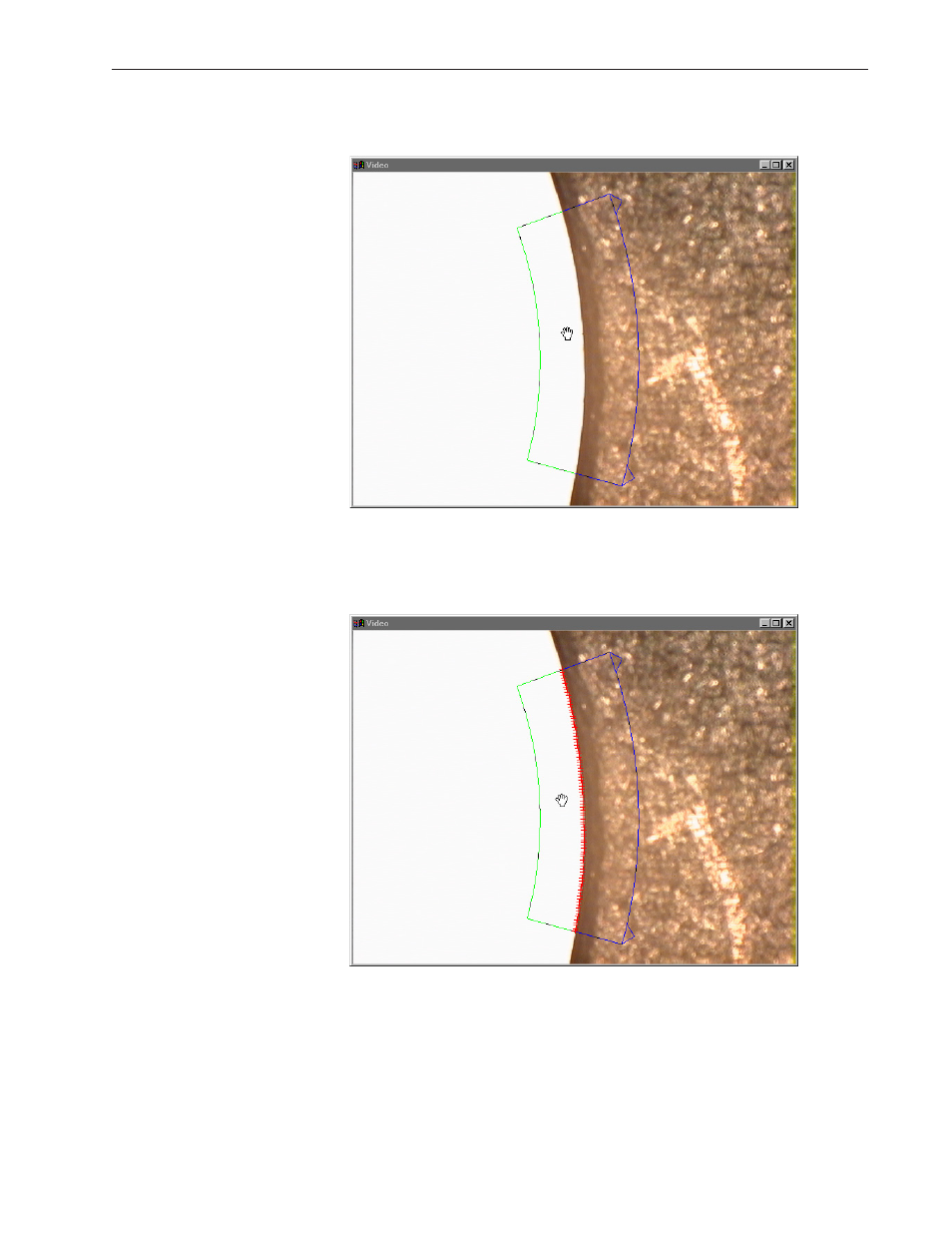

Move the part and place the probe tool as shown.

Step 12
Click the center mouse button to fire the probe tool.
