5-15
Quadra-Chek ® 5000
Step 4

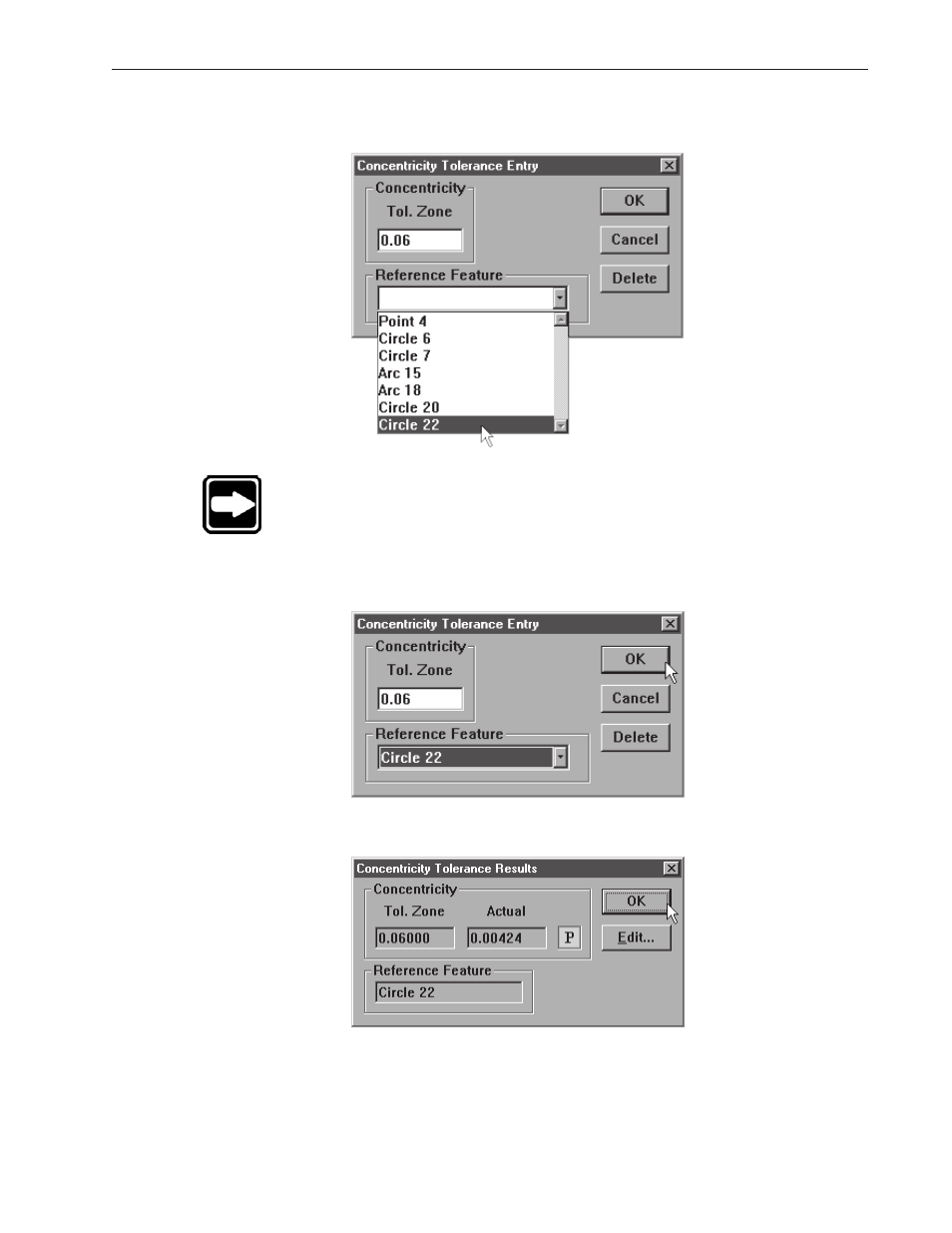

Select the reference feature as shown.
NOTE
If no features appear in the reference feature list concentricity
tolerancing is not possible.
Step 5
Click OK in the dialog box.
The tolerance results window appears as shown.
