To perform a LMC
Step 1

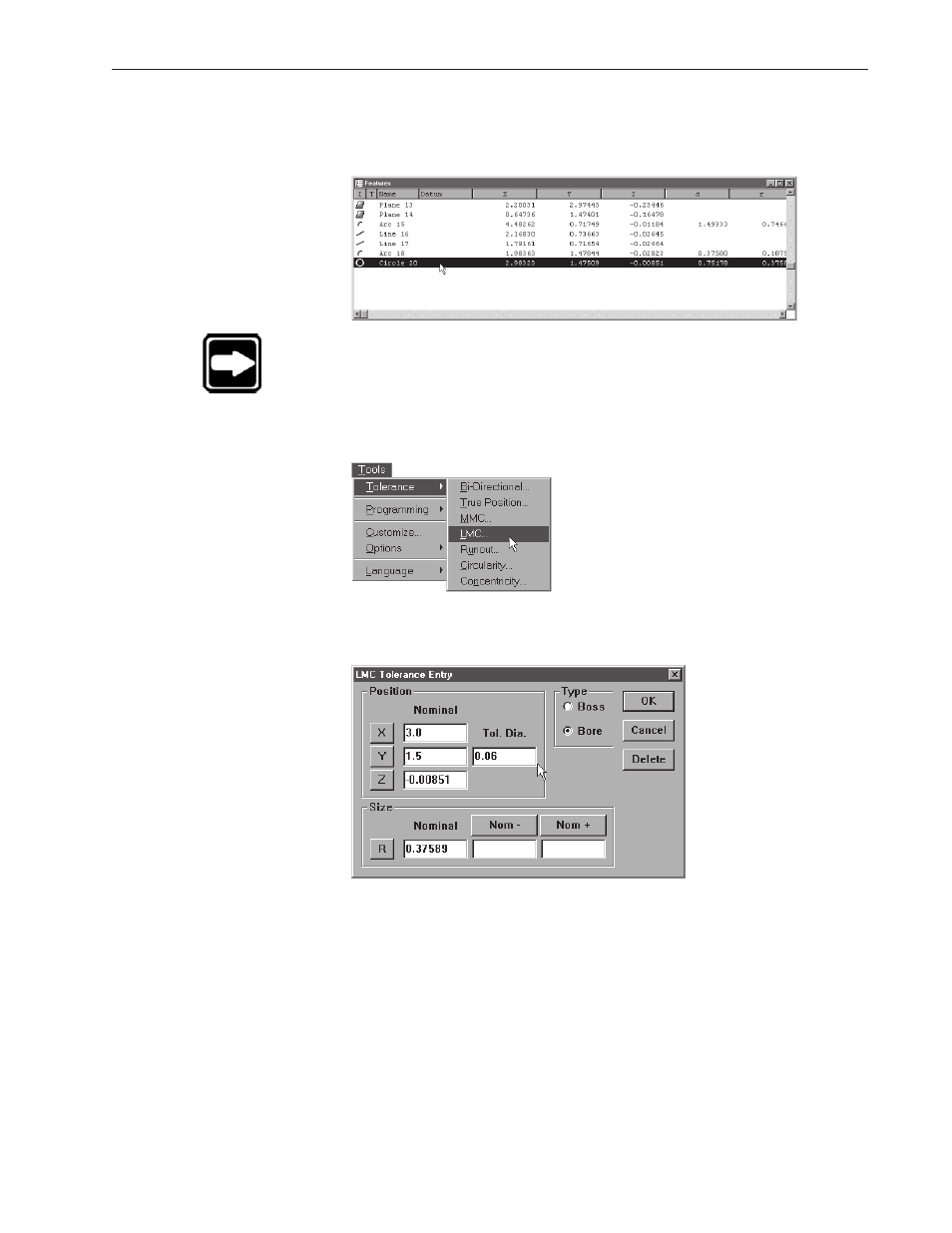

Highlight the desired feature in the features list.
NOTE
Use only a circle, point, arc, or sphere. MMC tolerances do not
apply to other types of features.
Step 2
Select tolerance then LMC from the tools menu.
Step 3
Type the nominal X and Y values for your part in the boxes as shown.
