2-41
Quadra-Chek ® 5000

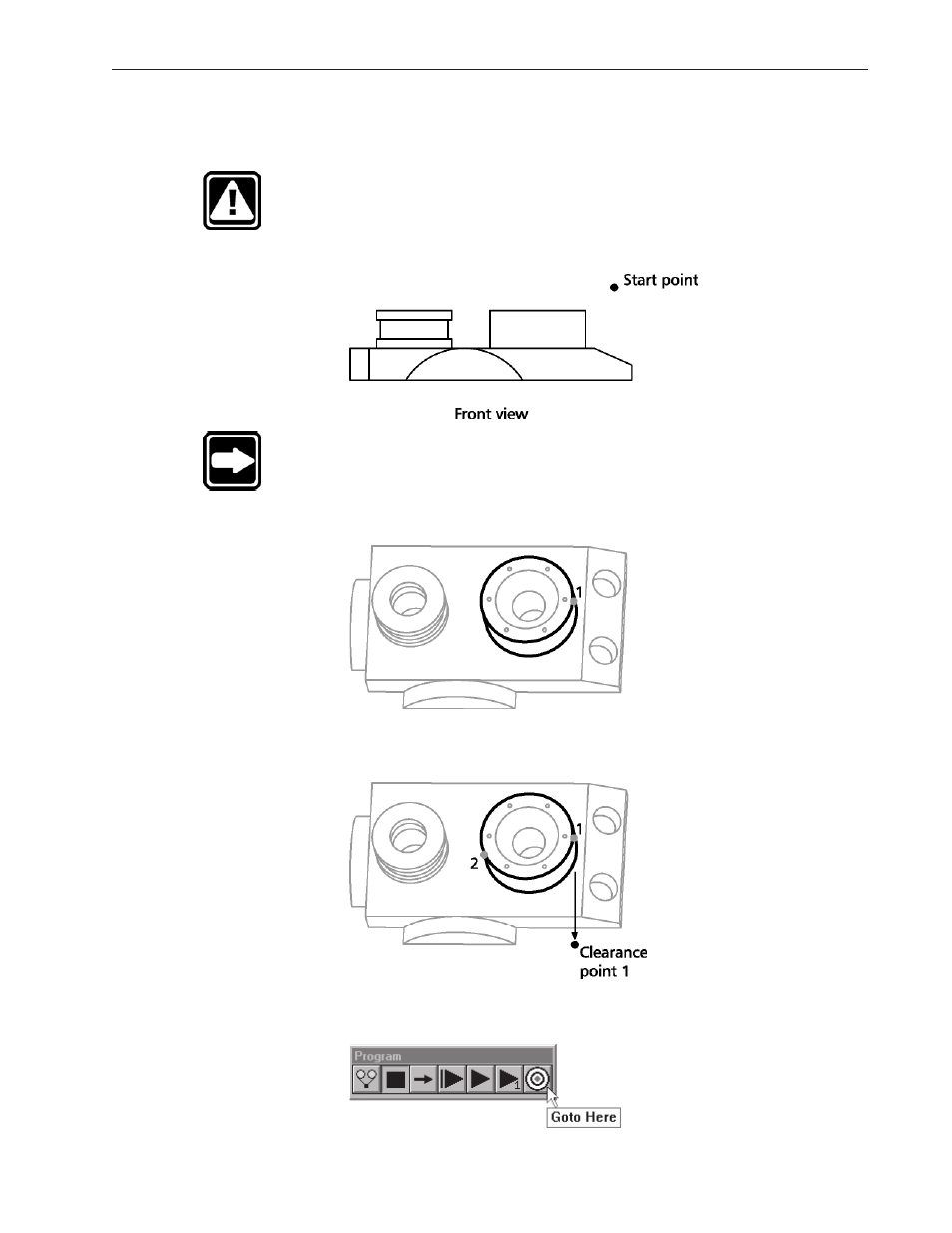

To measure a cylinder
Step 1
Position the probe as shown.
CAUTION
Insert any clearance moves necessary to avoid probe
collisions.
NOTE
Points 1,2, and 3 are around the top of the cylinder.
Step 2
Probe the first point as shown.
Step 4
Insert clearance point 1 as shown.
Step 5
Click the goto button on the program toolbar.
