Interconnection Diagram
2-Wire Control
Section 7

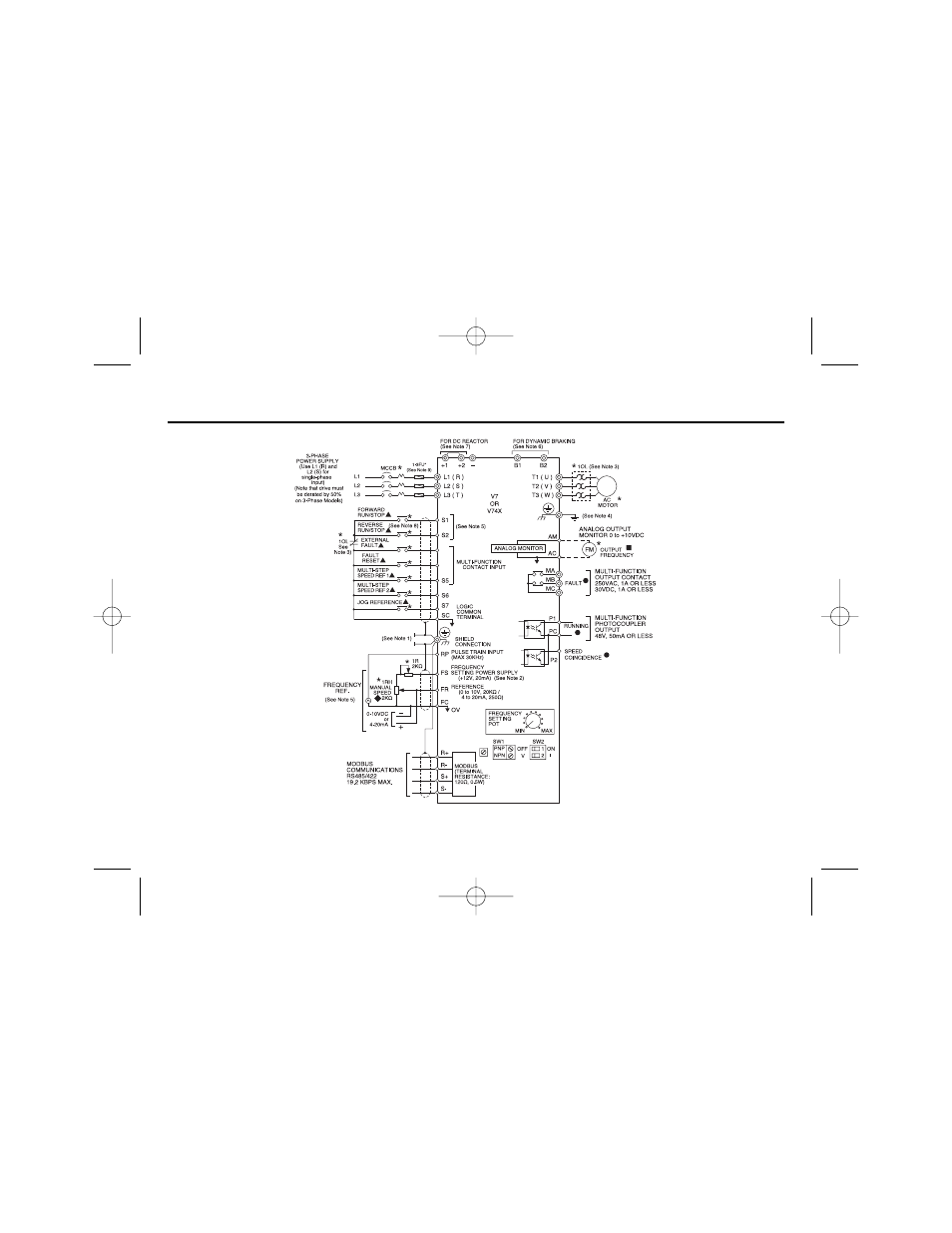

Figure 1-5. Standard Connections (2-Wire Control)
(Parameter n001 set to “10”)
S4
S3
