6. Change the settings as necessary.
7. Select the left arrow to return to the previous screen.
8. Select
Printing Language
.
• If you are printing over USB, select
USB
and change the
Printing Language
setting to
HP-GL/2
.
• If you are printing over a network, select
Network
and change the
Printing Language
setting to
HP-GL/2
.
Note:
Make sure you return the
Printing Language
setting to
Auto
when you are done printing in
HP-GL/2 mode.
9. Open the file you want to print in your CAD software.
10. Click
Plot
and select your product as the printer.
11. Start printing your drawing from the CAD software.
Parent topic:
Printing from a Shared Folder
You can select and print a file from a shared network folder that has been setup in advance using the
printer's screen or in Web Config.

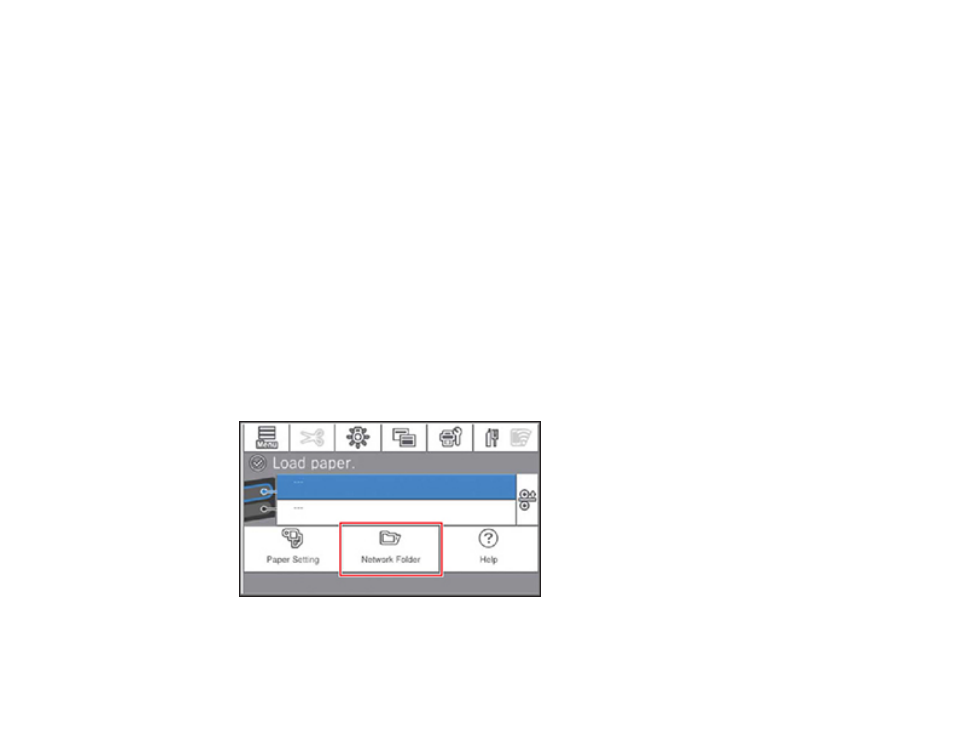

1. On the LCD screen, select
Network Folder
.
The files in the shared folder appear.
