Wall Mounting (Optional)
(Screw dimension: M4 x 10 mm). Refer to the instructions that come with the VESA-
compatible base mounting kit.
1.
Place the monitor panel on a soft cloth or cushion on a stable flat table.
2.
Remove the stand.
3.

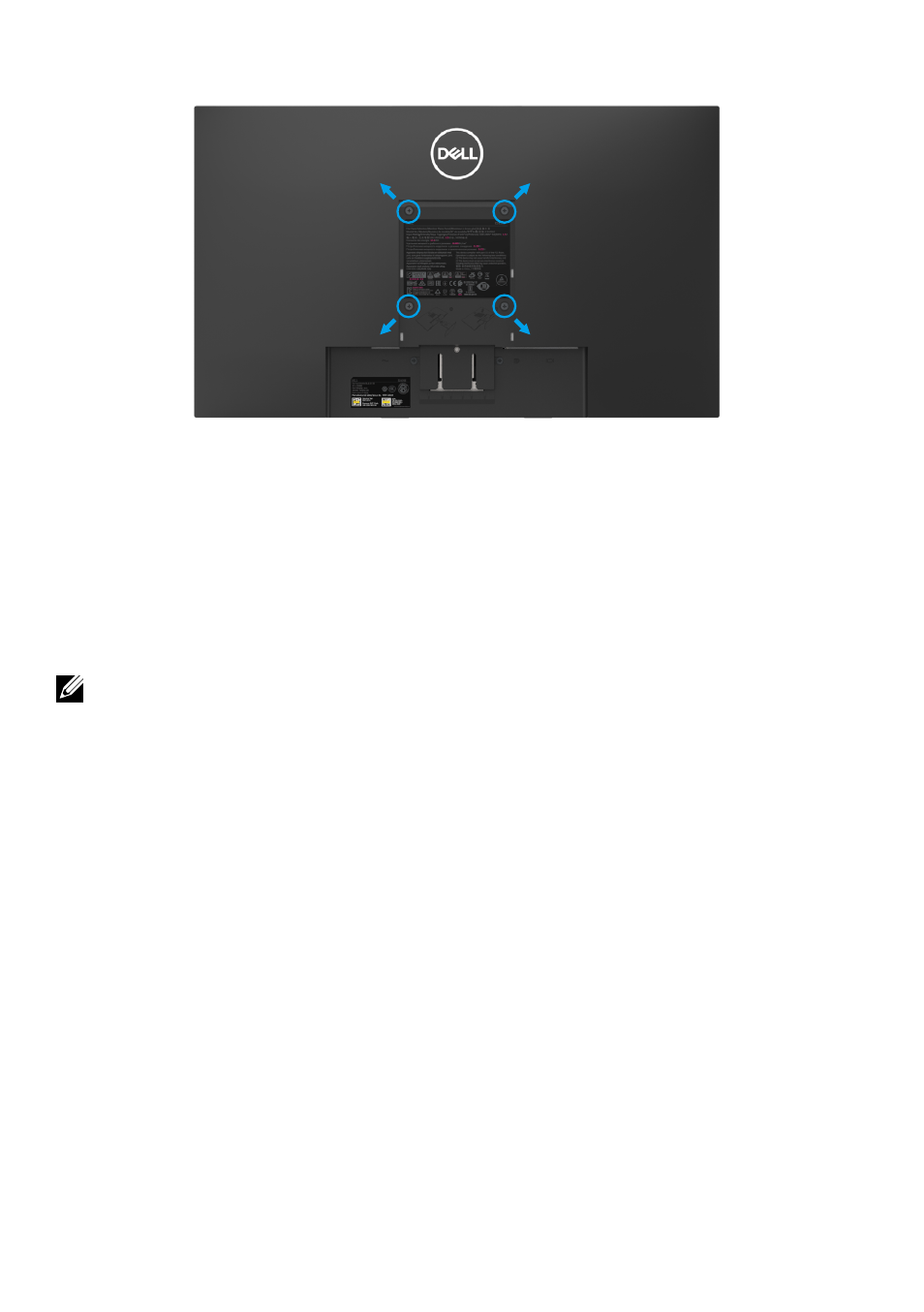

Use a screwdriver to remove the four screws securing the plastic cover.
4.
Attach the mounting bracket from the wall mounting kit to the LCD.
5.
Mount the LCD on the wall by following the instructions that came with the base
mounting kit.
NOTE: For use only with UL or CSA or GS-listed wall-mount bracket with minimum
weight/load bearing capacity of 8.76 kg (19.31 lb) for E1920H, 8.80 kg (19.40 lb)
for E2020H, 10.80 kg (23.80 lb) for E2220H, 13.00 kg (28.66 lb) for E2420H, 13.20
kg (29.10 lb) for E2420HS, 18.00 kg (39.68 lb) for E2720H, 18.16 kg (40.04 lb) for
E2720HS.
